Caterpillar

574

Forwarder

Operating Weight - 8wd
37,000 lb
Max Speed
15.5 mph
Displacement
439 in³
All forwarders

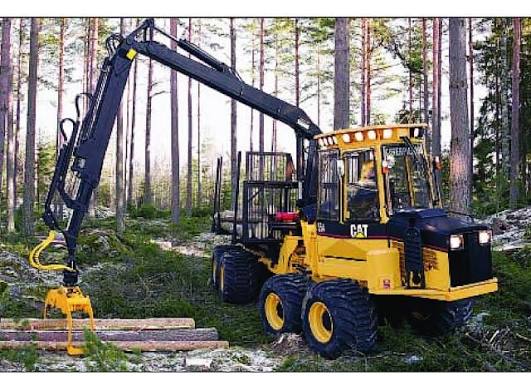

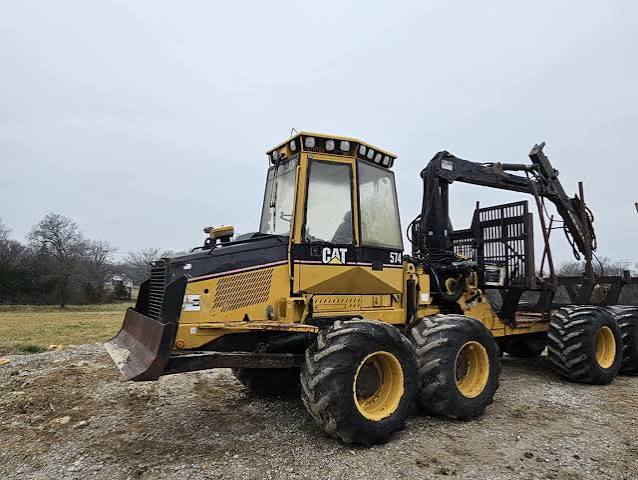

Caterpillar 574 Forwarder
1 / 5
Image 1 of 5
Image: lumbermenonline.com

Specifications

38 data points

Operating Specifications

Operating Specifications specifications
Operating Weight - 8wd37,000 lb
Fuel Capacity33.1 gal
Front/Rear Tire Size - 8wd700/50-26.5 16PR
Maximum Travel Speed8.1 mph
Payload32,000 lb
Load Capacity32,000 lb
Load Capacity - With Clam Bunk Attachment26,000 lb
Loader Reach275 in
Maximum Speed - 6WD14.5 mph
Wood Bunk Length222 in

Engine

Engine specifications
Engine ModelCat C6.6 ACERT
Displacement439 in³
Power Measured @2,200 rpm
Gross Power173.0 hp
Torque Measured @1,600 rpm
Power154.3 hp
Torque555 lb-ft

Weights

Weights specifications
Operating Weight38,000 lb
Gross (Loaded) Machine Weight35,274 lb

Hydraulic System

Hydraulic System specifications
Flow Rate66.0 gal/min
Hydraulic Fluid Reservoir32.0 gal

Dimensions

Dimensions specifications
Ground Clearance26 in
Width Over Tires111 in
Length370 in
Length of Bunk Area214 in
Width of Bunk Area111 in

Transmission

Transmission specifications
Max Speed15.5 mph
Transmission TypeHydrostatic/Mechanical
Number of Forward Gears3
Number of Reverse Gears3
TransmissionElectric Power Shift

Tires & Wheels

Tires & Wheels specifications
Tire Size - Rear - Optional800/50 x 26.5
Tire Size - Front - Optional800/50 x 26.5

Service Refill Capacities

Service Refill Capacities specifications
Fuel Tank47.0 gal

Bunk

Bunk specifications
Load Weight - 8wd30,800 lb

Crane

Crane specifications
Max Reach282 in
Gross Lift Torque16,875 lb-ft
Crane TypeF71 F73
