Caterpillar

814B

Wheel Dozer

Operating Weight
45,371 lb
Max Speed - Forward
18.6 mph
Gross Power
216.0 hp
All wheel dozers

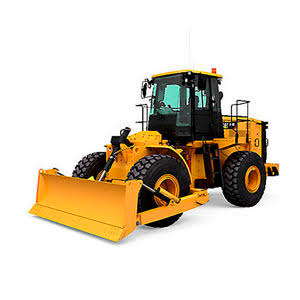

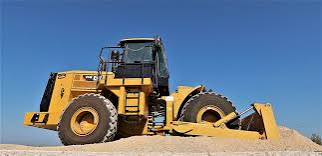

Caterpillar 814B Wheel Dozer
1 / 5
Image 1 of 5
Image: cat.com

Specifications

17 data points

Operating Specifications

Operating Specifications specifications
Operating Weight45,371 lb
Fuel Capacity122.1 gal
Tire Size23.5-25 12PR (L-3)

Engine

Engine specifications
Engine Model3306
Displacement641 in³
Gross Power216.0 hp
Engine Make2236

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab141 in
Wheelbase132 in
Width Over Tires113 in
Length With Blade on Ground269 in

Transmission

Transmission specifications
Max Speed - Forward18.6 mph
Max Speed - Reverse21.2 mph
Number of Forward Gears4
Number of Reverse Gears4

Blades

Blades specifications
Blade Capacity3.90 yd³
