Caterpillar

824K

Wheel Dozer

Operating Weight
74,966 lb
Gross Power
435.0 hp
All wheel dozers

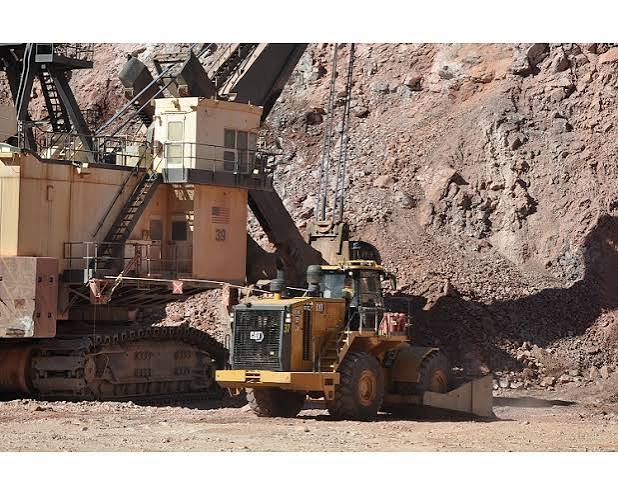

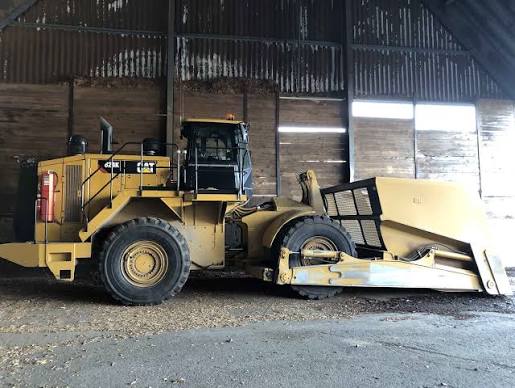

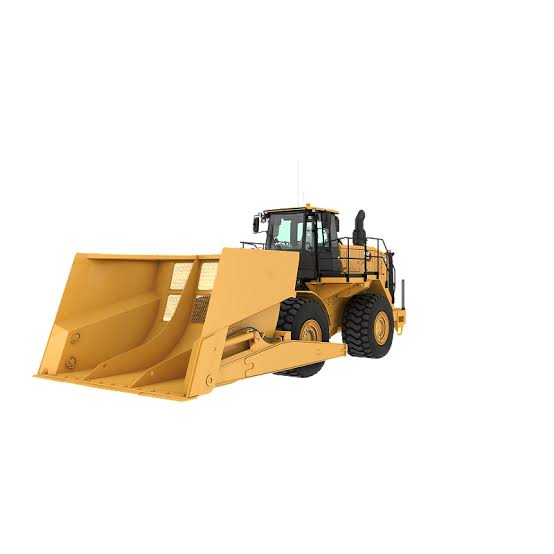

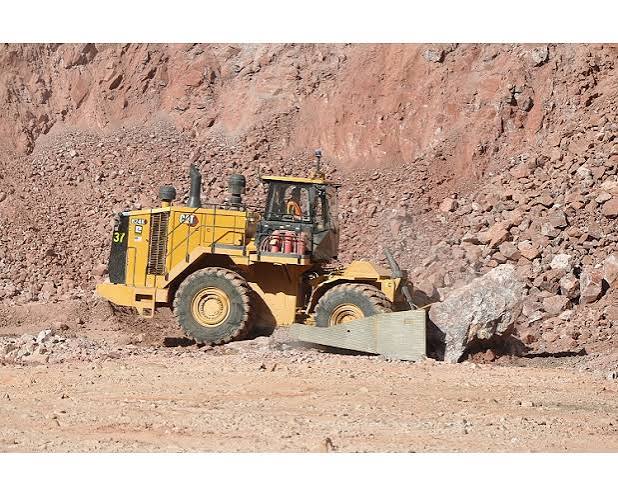

Caterpillar 824K Wheel Dozer
1 / 5
Image 1 of 5
Image: directindustry.com

Specifications

27 data points

Operating Specifications

Operating Specifications specifications
Operating Weight74,966 lb

Engine

Engine specifications
Engine ModelCat C15 ACERT
Displacement928 in³
Gross Power435.0 hp
Stroke7 in
Bore5 in
Net Power - ISO 9249405.0 hp
EmissionsMeets U.S. EPA Tier 4 Final/EU Stage IV emission standards or meets U.S. EPA Tier 3/EU Stage IIIA equivalent emission standards

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab162 in
Wheel Base145 in
Height - Top of Hood126 in
Centerline of Front Axle to Hitch73 in
Centerline of Rear Axle to Edge of Bumper111 in

Transmission

Transmission specifications
Transmission TypePlanetary Powershift ECPC

Service Refill Capacities

Service Refill Capacities specifications
Differential - Final Drives - Front26.4 gal
Transmission17.4 gal
Cooling System30.6 gal
Fuel Tank206.6 gal
Engine Crankcase9.0 gal
Hydraulic Tank Only35.4 gal
Diesel Exhaust Fluid Tank (Tier 4 Final/Stage IV Equivalent)8.5 gal

Axles

Axles specifications
FrontPlanetary Fixed
RearPlanetary Oscillating
Oscillation Angle11 °

Hydraulic System - Steering

Hydraulic System - Steering specifications
Steering System - CircuitDouble Acting End Mounted
Steering System - PumpPiston Variable Displacement
