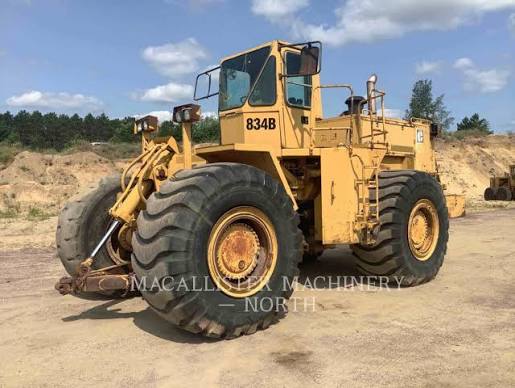

Caterpillar
834B
- Operating Weight
- 102,195 lb
- Operating Weight
- 102,213 lb
- Max Speed - Forward
- 21.2 mph
- Gross Power
- 450.0 hp
1 / 5
Image 1 of 5
Specifications
51 data points
Operating Specifications
| Operating Weight | 102,195 lb |
|---|---|
| Fuel Capacity | 157.2 gal |
| Tire Size | 35/65-33 (L-4) |
| Ground Clearance | 18 in |
| Turning Circle - With Blade | 678 in |
Engine
| Engine Model | Cat 3408E HEUI |
|---|---|
| Displacement | 1,099 in³ |
| Gross Power | 450.0 hp |
| Engine Make | 2236 |
| Flywheel Power | 450.0 hp |
Weights
| Operating Weight | 102,213 lb |
|---|
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 162 in |
| Wheelbase | 150 in |
| Width Over Tires | 141 in |
| Wheel Base | 150 in |
| Length With Blade on Ground | 343 in |
Transmission
| Max Speed - Forward | 21.2 mph |
|---|---|
| Max Speed - Reverse | 26.0 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
| Forward - 1 | 4.0 mph |
| Forward - 2 | 7.1 mph |
| Forward - 3 | 12.3 mph |
| Forward - 4 | 21.2 mph |
| Reverse - 1 | 5.0 mph |
| Reverse - 2 | 8.7 mph |
| Reverse - 3 | 15.3 mph |
| Number of Forward Speeds | 4 |
| Number of Reverse Speeds | 4 |
| Reverse - 4 | 26.0 mph |
Tires & Wheels
| Standard Tire Size | 35/65-3324 Pr (L-4) |
|---|
Service Refill Capacities
| Differential - Final Drives - Front | 38.1 gal |
|---|---|
| Transmission | 27.0 gal |
| Cooling System | 28.0 gal |
| Crankcase | 11.1 gal |
| Fuel Tank - Standard | 157.0 gal |
Blades
| Blade Capacity | 9.60 yd³ |
|---|---|
| Straight Blade - Capacity | 9.60 yd³ |
| Straight Blade - Digging Depth | 18 in |
| Straight Blade - Height | 57 in |
| Straight Blade - Maximum Tilt | 50 in |
| Straight Blade - Overall Width | 183 in |
| Maximum Lift Above Ground | 44 in |
| Moldboard - Length | 183 in |
| Straight Blade - Ground Clearance | 44 in |
Steering System
| Turning Radius - With Straight Blade | 241 in |
|---|---|
| Steering Angle | 35 ° |
Axles
| Front | Fixed |
|---|---|
| Rear | Oscillates |
| Maximum Single-Wheel Rise and Fall | 22 in |
