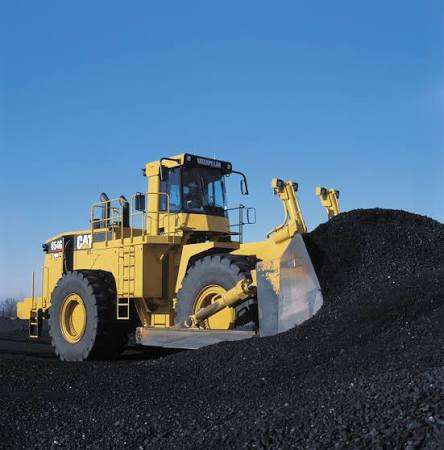

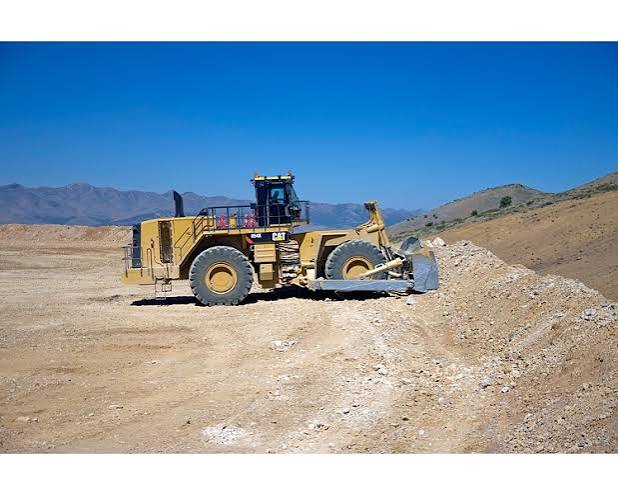

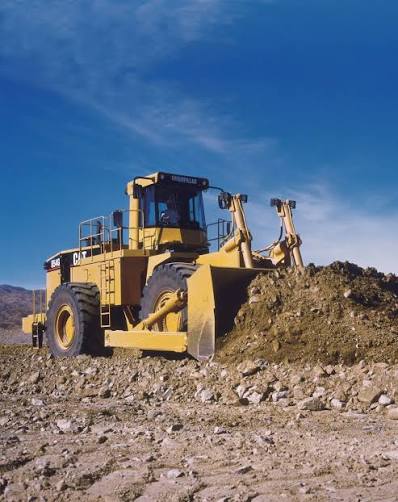

CaterpillarCaterpillar
854K
Wheel Dozer
57 specifications
1 / 5
Image 1 of 5
Specifications
47 data points
Operating Specifications
| Operating Weight | 219,129 lb |
|---|---|
| Fuel Capacity | 412.7 gal |
| Tire Size | 45/65 R45 |
| Engine Oil Capacity | 27.0 gal |
| Front Diff Fluid Capacity | 91.2 gal |
| Rear Diff Fluid Capacity | 86.2 gal |
| Transmission Fluid Capacity | 44.7 gal |
| Cooling System Fluid Capacity | 53.9 gal |
| Axle Oscillation | 11 ° |
| Alternator Supplied Amperage | 105 A |
| Operating Voltage | 24 V |
| Ground Clearance | 52 in |
| Steering Angle | 43 ° |
| Turning Circle - With Blade | 390 in |
Engine
| Engine Model | 3508B EUI |
|---|---|
| Displacement | 2,105 in³ |
| Power Measured @ | 1,750 rpm |
| Engine Make | 2236 |
| Torque Rise | 30.0 % |
| Net Torque | 3,111 lb-ft |
| Flywheel Power | 800.0 hp |
Weights
| Operating Weight | 212,230 lb |
|---|
Dimensions
| Ground Clearance | 61 in |
|---|---|
| Height - Top of Cab | 219 in |
| Wheelbase | 233 in |
| Width Over Tires | 179 in |
| Length With Blade on Ground | 528 in |
Transmission
| Max Speed - Forward | 13.2 mph |
|---|---|
| Max Speed - Reverse | 14.5 mph |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
| Number of Forward Speeds | 3 |
| Number of Reverse Speeds | 3 |
Tires & Wheels
| Standard Tire Size | 45/65R45 L-4 |
|---|
Service Refill Capacities
| Differential - Final Drives - Front | 91.2 gal |
|---|---|
| Transmission | 44.7 gal |
| Cooling System | 53.9 gal |
| Crankcase | 27.0 gal |
| Fuel Tank - Standard | 355.0 gal |
| Hydraulic Tank | 86.2 gal |
Blades
| Blade Capacity | 33.30 yd³ |
|---|---|
| Blade Width | 250 in |
| Blade Height | 86 in |
Steering System
| Steering Angle | 43 ° |
|---|
Axles
| Front | Fixed |
|---|---|
| Rear | Oscillates |
| Maximum Single-Wheel Rise and Fall | 25 in |
