Letourneau

D950

Wheel Dozer

Operating Weight
230,000 lb
Max Speed - Forward
15.0 mph
Gross Power
1,050.0 hp
All wheel dozers

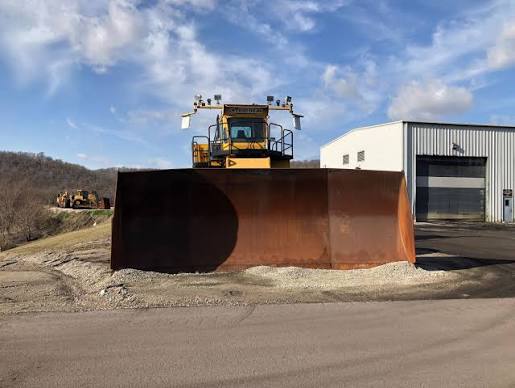

Letourneau D950 Wheel Dozer
1 / 5
Image 1 of 5
Image: machinerytrader.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight230,000 lb
Fuel Capacity564.7 gal
Tire Size45/65-45
Engine Oil Capacity34.9 gal
Front Diff Fluid Capacity6.1 gal
Rear Diff Fluid Capacity6.1 gal
Transmission Fluid Capacity5.1 gal
Axle Oscillation11 °
Steering Angle42 °

Engine

Engine specifications
Engine ModelQST 30
Displacement1,861 in³
Power Measured @1,900 rpm
Gross Power1,050.0 hp
Aspirationturbocharged

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab234 in
Wheelbase234 in
Width Over Tires198 in
Length With Blade on Ground529 in

Transmission

Transmission specifications
Max Speed - Forward15.0 mph
Max Speed - Reverse15.0 mph
Transmission Typeinfinitely variable

Blades

Blades specifications
Blade Capacity35.00 yd³
Blade Width247 in
Blade Height88 in

Comparable machines

Other wheel dozers in a similar weight class.
