Caterpillar

992C

Wheel Loader

Operating Weight
187,790 lb
Bucket Capacity - heaped
12.60 yd³
Net Power
690.0 hp
All wheel loaders

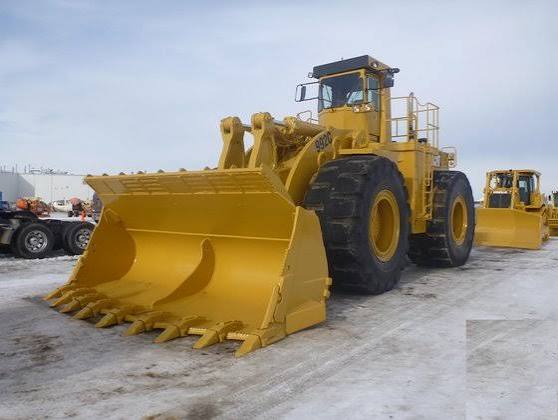

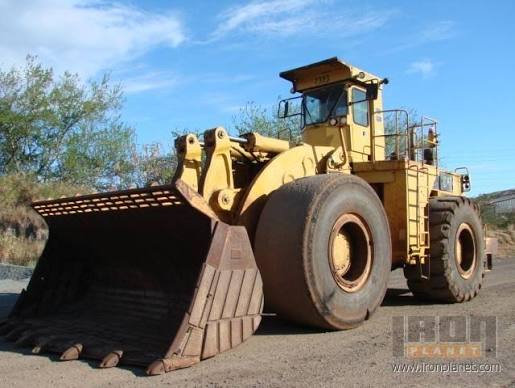

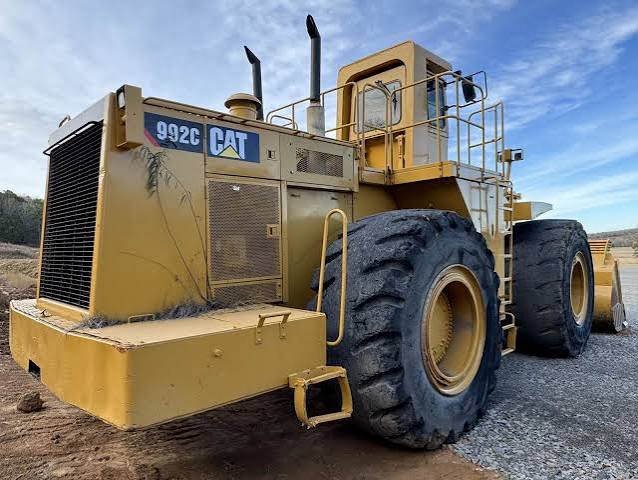

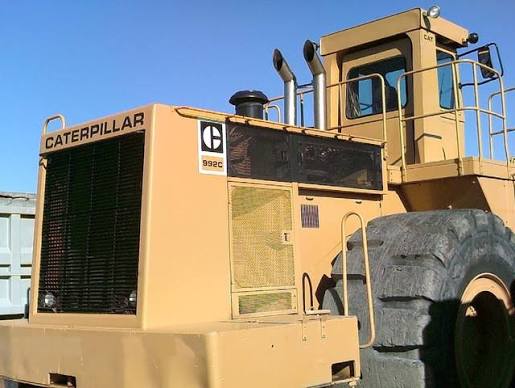

Caterpillar 992C Wheel Loader
1 / 5
Image 1 of 5
Image: ccmodels.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight187,790 lb
Fuel Capacity300.1 gal
Hydraulic System Fluid Capacity143.0 gal
Static Tipping Weight106,483 lb

Engine

Engine specifications
Engine Model3412
Displacement1,648 in³
Net Power690.0 hp

Hydraulic System

Hydraulic System specifications
Raise Time12.0 s
Lower Time4.0 s
Dump Time2.5 s

Dimensions

Dimensions specifications
Height - Top of Cab344 in
Reach at Max Lift and Dump83 in
Length with Bucket on Ground502 in

Transmission

Transmission specifications
Max Speed - Forward13.2 mph
Max Speed - Reverse14.5 mph
Number of Forward Gears3
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped12.60 yd³
Bucket Capacity - struck10.70 yd³
Dump Clearance at Max Raise178 in
Breakout Force147,050 lb
Bucket Width181 in
