Caterpillar

D7E WH

Crawler Dozer

Operating Weight
63,537 lb
All crawler dozers

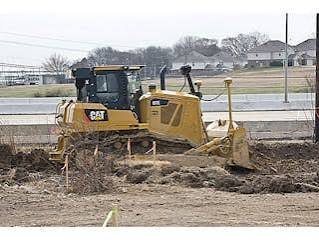

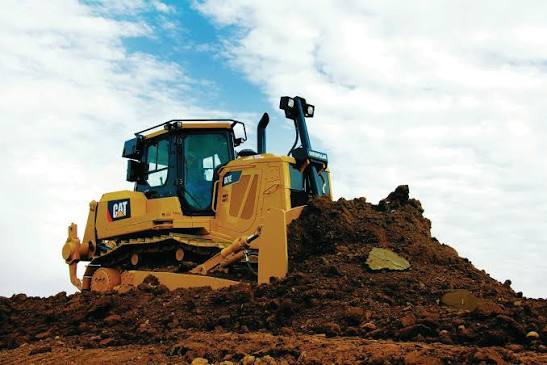

Caterpillar D7E WH Crawler Dozer
1 / 5
Image 1 of 5
Image: heavyequipmentguide.ca

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight63,537 lb

Engine

Engine specifications
Engine ModelCat C9.3 ACERT
Displacement567 in³
MakeCat
Stroke6 in
Bore5 in
Flywheel Power251.0 hp

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Track Gauge90 in
Ground Clearance19 in

Service Refill Capacities

Service Refill Capacities specifications
Fuel Tank113.5 gal
Cooling System22.5 gal
Final Drive - Each7.0 gal
Hydraulic Tank20.0 gal
Engine Crankcase8.0 gal
Power Train16.0 gal
Pivot Shaft Compartment1.8 gal
Roller Frames - Each11.0 gal
DEF Tank4.8 gal

Standards

Standards specifications
FOPSFalling Object Protective Structure (FOPS) meets the following criteria: ISO 3449:2005 Level II
ROPSRollover Protective Structure (ROPS) meets the following criteria: ISO 3471:2008
BrakesCrawler Machine Brake Requirements meets the following criteria: ISO 10265:2008
