Doosan

SOLAR 180W-V

Excavator

Operating Weight
39,021 lb
Net Power
150.0 hp
All excavators

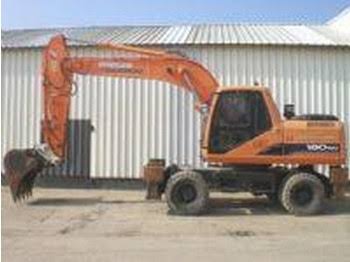

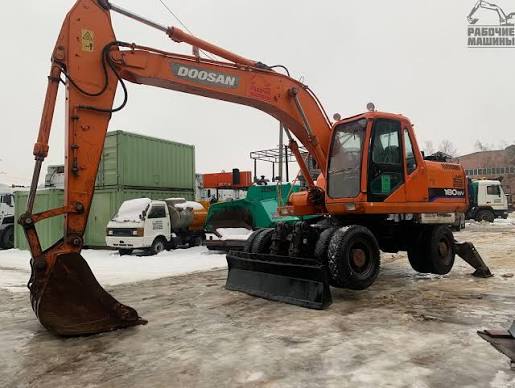

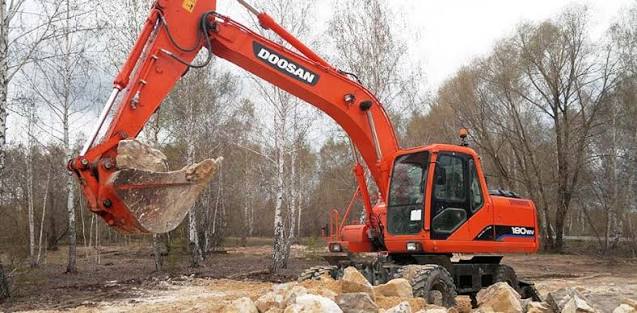

Doosan SOLAR 180W-V Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

50 data points

Operating Specifications

Operating Specifications specifications
Operating Weight39,021 lb
Fuel Capacity74.0 gal
Hydraulic Pump Flow Capacity86.7 gal/min
Hydraulic System Fluid Capacity54.2 gal
Hydraulic System Relief Valve Pressure4,978 psi
Engine Oil Capacity5.5 gal
Cooling System Fluid Capacity13.0 gal
Tire Size10.00-20-14PR(OTR)

Engine

Engine specifications
Engine ModelDB 58TIS
Displacement353 in³
Power Measured @2,100 rpm
Net Power150.0 hp
Number of Cylinders6
Torque Measured @1,500 rpm
Net Torque434 lb-ft

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab122 in
Wheelbase110 in
Overall Width8 in
Tail Swing Radius97 in
Digging Depth236 in
Digging Reach359 in
Upper Structure Clearance49 in

Transmission

Transmission specifications
Max Travel Speed19.9 mph
Transmission Typehydrostatic powershift
Number of Forward Gears2
Number of Reverse Gears2

Bucket

Bucket specifications
Reference Bucket Capacity0.80 yd³
Maximum Bucket Capacity1.10 yd³
Minimum Bucket Capacity0.50 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm

Boom/Stick Mobile Excavator Option 1

Boom/Stick Mobile Excavator Option 1 specifications
Max Digging Depth238 in
Max Cutting Height356 in
Max Reach Along Ground349 in
Max Loading Height248 in
Max Vertical Wall Dig Depth198 in

Boom/Stick Mobile Excavator Option 2

Boom/Stick Mobile Excavator Option 2 specifications
Max Digging Depth223 in
Max Cutting Height348 in
Max Reach Along Ground336 in
Max Loading Height236 in
Max Vertical Wall Dig Depth180 in

Boom/Stick Mobile Excavator Option 3

Boom/Stick Mobile Excavator Option 3 specifications
Max Digging Depth257 in
Max Cutting Height362 in
Max Reach Along Ground367 in
Max Loading Height256 in
Max Vertical Wall Dig Depth217 in

Boom/Stick Mobile Excavator Option 4

Boom/Stick Mobile Excavator Option 4 specifications
Max Digging Depth221 in
Max Cutting Height374 in
Max Reach Along Ground343 in
Max Loading Height264 in
