Dynapac

CC6200

Smooth Drum Roller

Operating Weight
29,983 lb
Max Speed
12.0 mph
Drum Width
84 in
Gross Power
159.6 hp
All smooth drum rollers

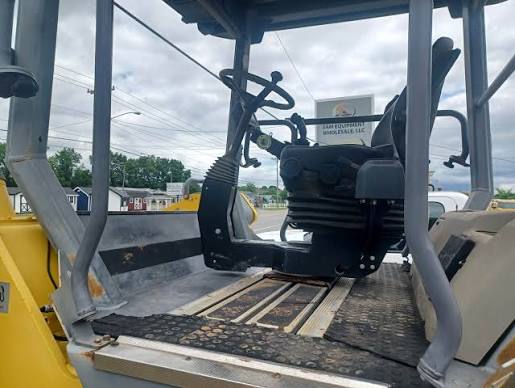

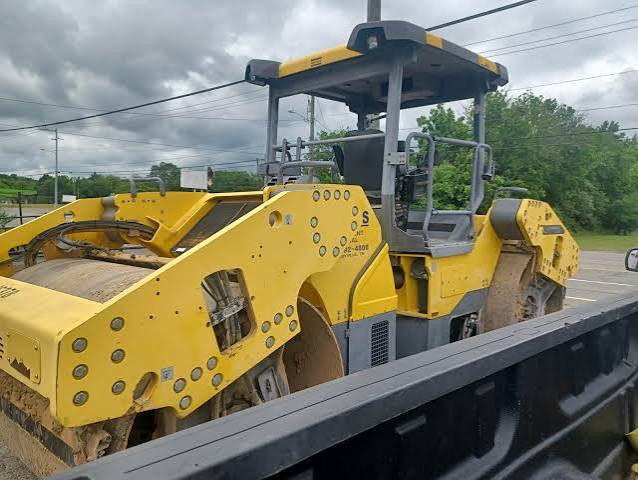

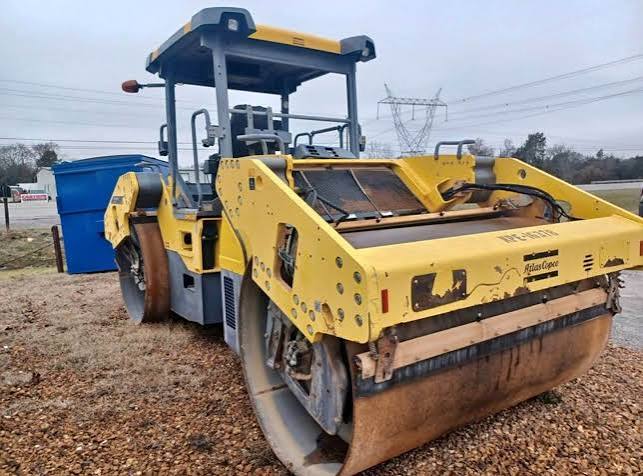

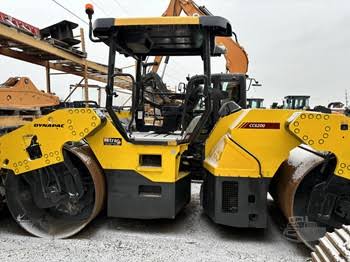

Dynapac CC6200 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: product.global-ce.com

Specifications

38 data points

Operating Specifications

Operating Specifications specifications
Operating Weight29,983 lb
Operating weight ROPS29,983 lb
Max Speed12.0 mph
Fuel Capacity63.5 gal
Oscillating angle7 °
Steering Angle32 °
Water Spray System Fluid Capacity237.8 gal

Engine

Engine specifications
Engine ModelQSB 4.5 IIIB
Power Measured @2,200 rpm
Gross Power159.6 hp
Engine MakeCummins
Engine TypeWater cooled turbo Diesel
Emissions CertificationTier 4i

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab119 in
Wheelbase145 in
Overall Length197 in
Overall Width91 in
Gradeability38.0 %
Turning Radius - Outside244 in
Curb clearance34 in

Brakes & Steering

Brakes & Steering specifications
Service brakeHydrostatic in forward and reverse lever
Parking brakeFailsafe multidisc brake in drum and wheel motors.

General Specifications

General Specifications specifications
Engine typeCummins QSF 3.8 — Starting 2018 Model Year
DRUM WIDTH IN. (CM)84 (213) — Starting 2016 Model Year
INSIDE TURN RADIUS IN. (CM)211 (535) — Starting 2016 Model Year
WIDTH IN. (CM)92 (233) — Starting 2016 Model Year
FREQUENCY HZ3,060/4,020 — Starting 2016 Model Year

Drum

Drum specifications
Drum Width84 in
Drum Diameter51 in
Vibration Frequency 151 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High37,318 lb
Vibration Frequency 267 vpm
Static Linear Load13 lb-ft
Centrifugal Force - Low23,830 lb
Nominal Amplitude - Low0 in
Drum thickness1 in
