Dynapac

CC6200 VI

Smooth Drum Roller

Operating Weight
33,500 lb
Max Speed
7.5 mph
Drum Width
84 in
Gross Power
130.0 hp
All smooth drum rollers

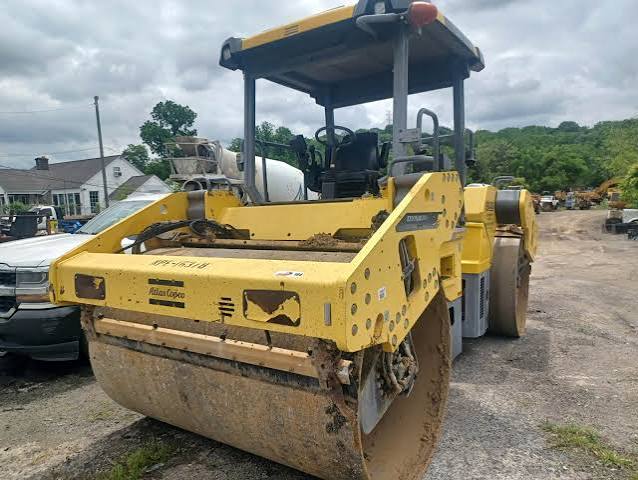

Dynapac CC6200 VI Smooth Drum Roller
1 / 5
Image 1 of 5
Image: product.global-ce.com

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Operating Weight33,500 lb
Operating weight ROPS27,300 lb
Max Speed7.5 mph
Fuel Capacity48.0 gal
Oscillating angle7 °
Steering Angle32 °
Water Spray System Fluid Capacity224.0 gal
DEF tank capacity4.0 gal

Engine

Engine specifications
Engine ModelQSF3.8 IV
Power Measured @2,200 rpm
Gross Power130.0 hp
Engine MakeCummins
Engine TypeWater cooled turbo Diesel with After Cooler
Emissions CertificationTier 4f

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab119 in
Wheelbase148 in
Overall Length199 in
Overall Width94 in
Turning Radius - Inside211 in
Gradeability32.0 %
Turning Radius - Outside295 in
Curb clearance32 in

Brakes & Steering

Brakes & Steering specifications
Service brakeHydrostatic in forward and reverse lever
Parking brakeFailsafe multidisc brake in drum and wheel motors.

General Specifications

General Specifications specifications
Engine typeCummins QSF 3.8 (T4f) — Starting 2024 Model Year
DRUM WIDTH IN. (CM)84 (213) — Starting 2024 Model Year
INSIDE TURN RADIUS IN. (CM)211 (535) — Starting 2024 Model Year
WIDTH IN. (CM)93 (236) — Starting 2024 Model Year
FREQUENCY VPM (HZ)3,060/4,020 (51/67) — Starting 2024 Model Year

Drum

Drum specifications
Drum Width84 in
Drum Diameter51 in
Vibration Frequency 151 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High35,300 lb
Vibration Frequency 267 vpm
Static Linear Load13 lb-ft
Centrifugal Force - Low23,160 lb
Nominal Amplitude - Low0 in
Drum thickness1 in
