Eco Log

554B

Forwarder

Operating Weight - 8wd
26,456 lb
Max Speed
15.6 mph
Displacement
269 in³
All forwarders

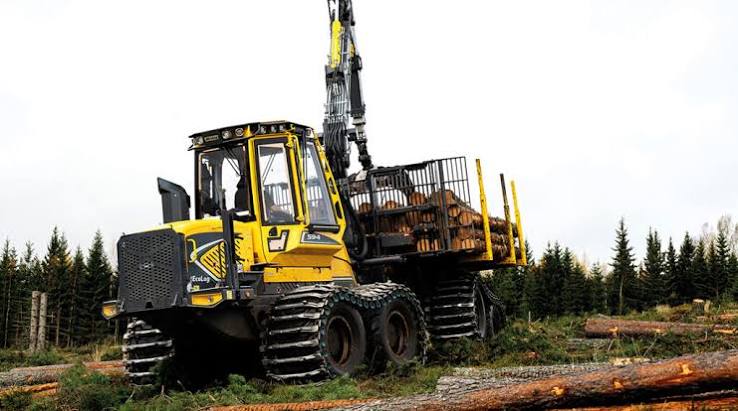

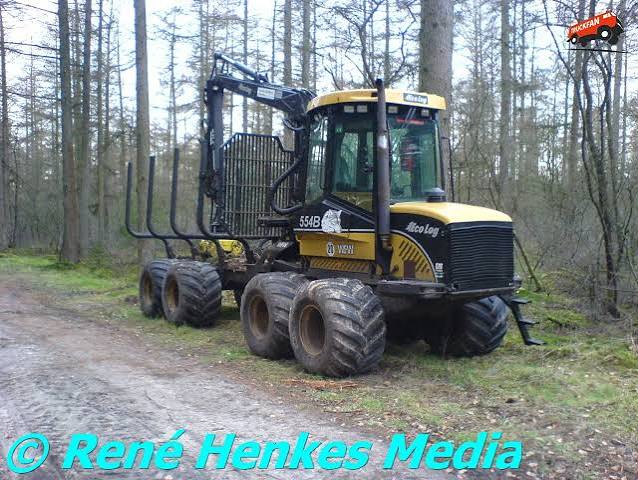

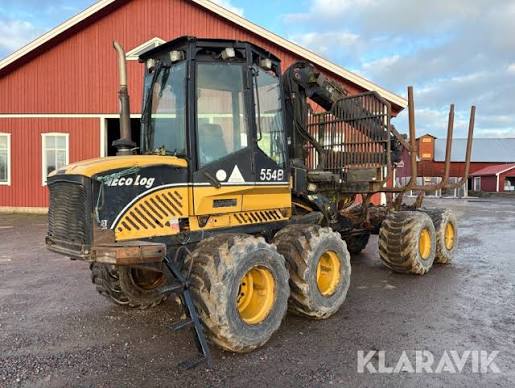

Eco Log 554B Forwarder
1 / 5
Image 1 of 5
Image: yumpu.com

Specifications

19 data points

Operating Specifications

Operating Specifications specifications
Operating Weight - 8wd26,456 lb
Fuel Capacity39.1 gal
Hydraulic System Fluid Capacity25.1 gal
Alternator Supplied Amperage100 A
Operating Voltage24 V
Front/Rear Tire Size - 8wd710/50x22.5

Engine

Engine specifications
Engine Model3054E
Displacement269 in³
Power130.0 hp

Dimensions

Dimensions specifications
Ground Clearance24 in
Width Over Tires107 in
Length325 in

Transmission

Transmission specifications
Max Speed15.6 mph
Transmission TypeHydrostatic Mechanical
Number of Forward Gears2
Number of Reverse Gears2

Bunk

Bunk specifications
Load Area16.35 yd³
Load Weight - 8wd22,046 lb

Crane

Crane specifications
Max Reach395 in

Comparable machines

Other forwarders in a similar weight class.
