Eco Log

574B

Forwarder

Operating Weight - 8wd
37,104 lb
Max Speed
15.6 mph
Displacement
366 in³
All forwarders

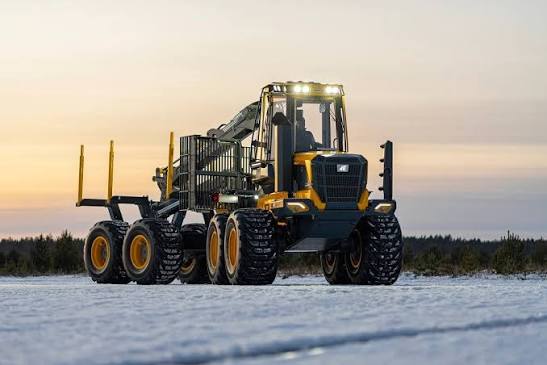

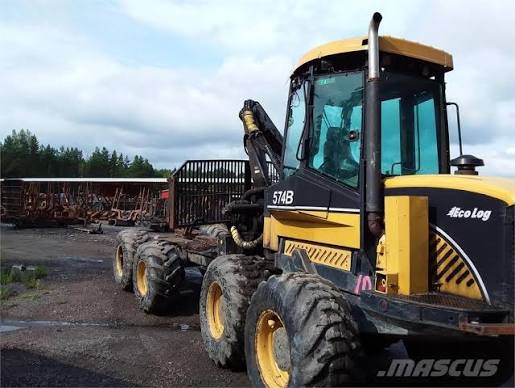

Eco Log 574B Forwarder
1 / 5
Image 1 of 5
Image: mascus.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight - 8wd37,104 lb
Fuel Capacity39.7 gal
Hydraulic System Fluid Capacity38.4 gal
Alternator Supplied Amperage150 A
Operating Voltage24 V
Front/Rear Tire Size - 8wd710/50x26.5

Engine

Engine specifications
Engine Model3056E
Displacement366 in³
Power174.0 hp
Torque513 lb-ft

Dimensions

Dimensions specifications
Ground Clearance26 in
Width Over Tires111 in
Length414 in
Length of Bunk Area221 in

Transmission

Transmission specifications
Max Speed15.6 mph
Transmission TypeHydrostatic Mechanical
Number of Forward Gears2
Number of Reverse Gears2

Bunk

Bunk specifications
Load Area21.49 yd³
Load Weight - 8wd30,865 lb

Crane

Crane specifications
Max Reach395 in
