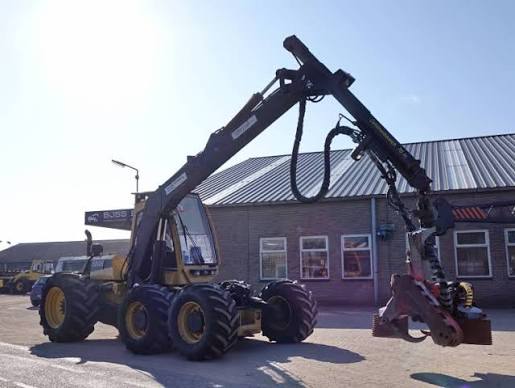

Eco Log
Caterpillar
570
Processor
18 specifications
1 / 5
Image 1 of 5
Specifications
21 data points
Operating Specifications
| Operating Weight | 39,353 lb |
|---|---|
| Max Speed | 11.2 mph |
| Fuel Capacity | 105.7 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 150 A |
| Transmission Type | hydrostatic 6 wheel drive |
Engine
| Engine Model | 3126B |
|---|---|
| Displacement | 439 in³ |
| Net Power | 225.0 hp |
| Max Torque | 848 lb-ft |
Dimensions
| Height - Top of Cab | 189 in |
|---|---|
| Wheelbase | 156 in |
| Overall Width | 119 in |
| Shipping Length - non tilt | 288 in |
| Forward Tilt | 15 ° |
| Side Tilt | 25 ° |
Boom
| Max Reach w/ Head | 445 in |
|---|
Drive System
| Tire Size - front | 600/55x26.5 |
|---|---|
| Tire Size - rear | 710/55x34 |
| Number of Axels | 3 |
| Drive Configuration | 6 wheeldrive |
