Gehl
Case
21D
Wheel Loader
43 specifications
1 / 5

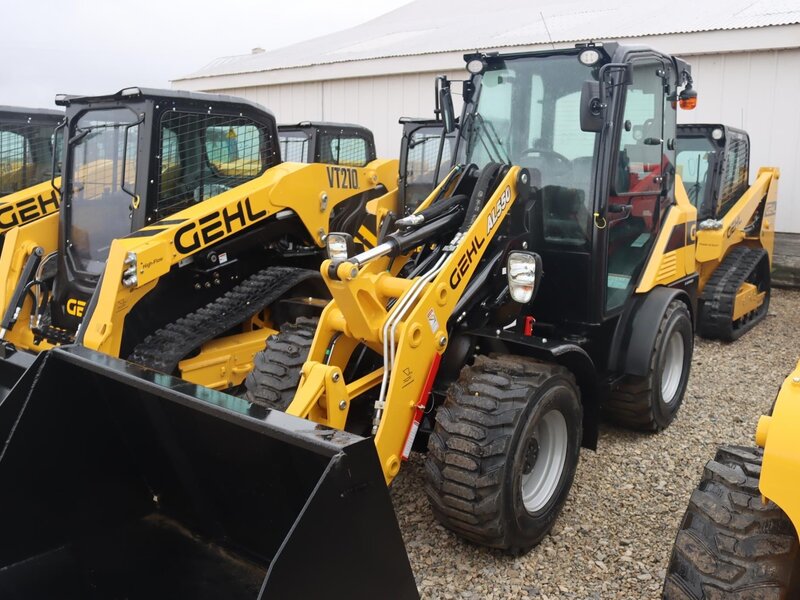

Image 1 of 5
Specifications
28 data points
Operating Specifications
| Operating Weight | 12,015 lb |
|---|---|
| Fuel Capacity | 21.2 gal |
| Hydraulic System Fluid Capacity | 22.5 gal |
| Static Tipping Weight | 8,730 lb |
| Operating Voltage | 12 V |
| Turning Radius | 157 in |
| Rear Axle Oscillation | 18 ° |
| Alternator Supplied Amperage | 95 A |
Engine
| Engine Model | BF4M 2011 |
|---|---|
| Displacement | 190 in³ |
| Power Measured @ | 2,300 rpm |
| Gross Power | 75.0 hp |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,600 rpm |
Hydraulic System
| Pump Flow Capacity | 18.5 gal/min |
|---|---|
| Relief Valve Setting | 3,400 psi |
| Pump Type | gear |
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Height - Top of Cab | 107 in |
| Wheelbase | 81 in |
| Width Over Tires | 73 in |
| Reach at Max Lift and Dump | 24 in |
| Length with Bucket on Ground | 221 in |
| Hinge Pin - Max Height | 134 in |
Transmission
| Max Speed - Forward | 12.4 mph |
|---|
Bucket
| Bucket Capacity - heaped | 2.39 yd³ |
|---|---|
| Dump Clearance at Max Raise | 106 in |
| Breakout Force | 9,217 lb |
