Genie

GS-2032

Aerial Lift

Max Platform Height
241 in
Overall Length
8 in
Overall Width
32 in
All aerial lifts

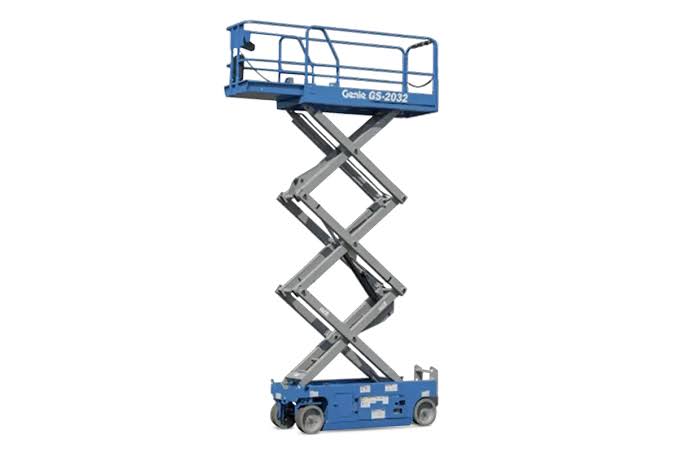

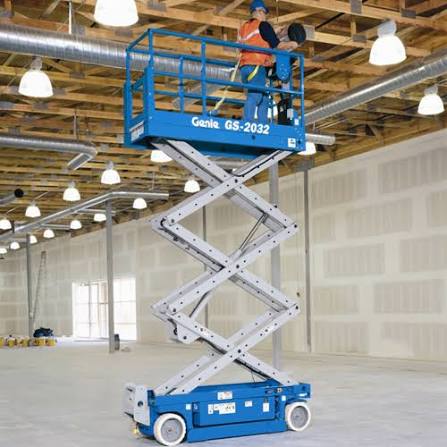

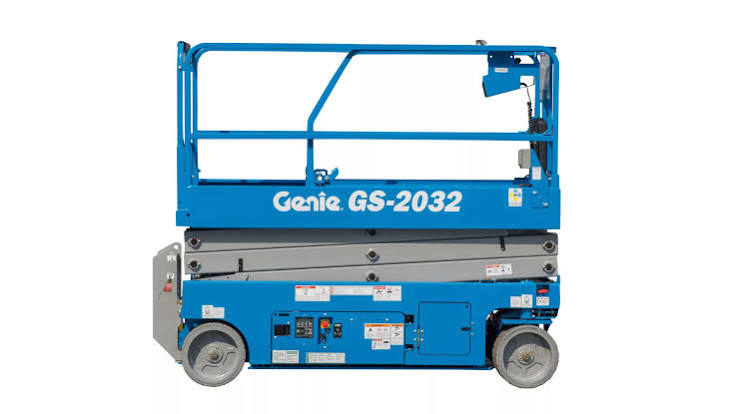

Genie GS-2032 Aerial Lift
1 / 5
Image 1 of 5
Image: mhequipment.com

Specifications

22 data points

Engine

Engine specifications
System Voltage24 V
Number of Batteries4

Dimensions

Dimensions specifications
Ground Clearance4 in
Wheelbase73 in
Overall Length8 in
Overall Width32 in
Turning Radius84 in
Height w/ Rails80 in
Height w/o Rails70 in

Performance

Performance specifications
Operating Weight3,574 lb
Max Speed2.2 mph
Tire Size15x5x11
Hydraulic System Fluid Capacity3.8 gal
Tire Fill/TypeSolid non-marking

Platform

Platform specifications
Max Platform Height241 in
Max Platform Weight Capacity800 lb
Platform Inner Length89 in
Platform Inner Width32 in
Max Working Height319 in
Lift Time30.0 s
Deck Extension36 in
Lower Time34.0 s
