Genie

Z-135/70

Aerial Lift

Max Platform Height
1,621 in
Overall Length
43 in
Overall Width
97 in
All aerial lifts

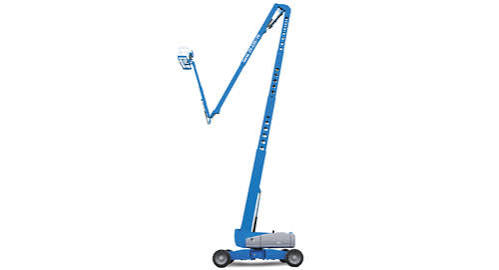

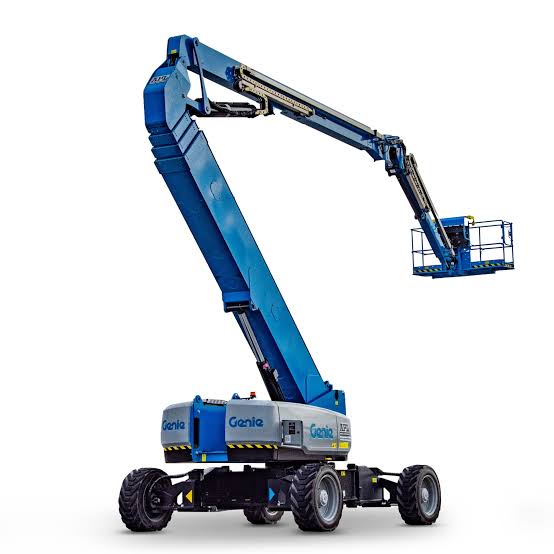

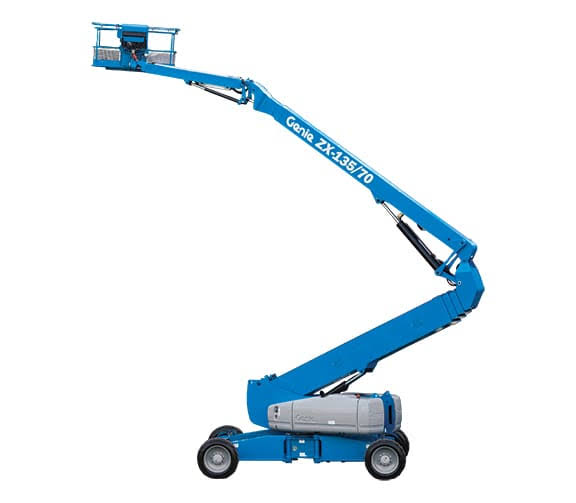

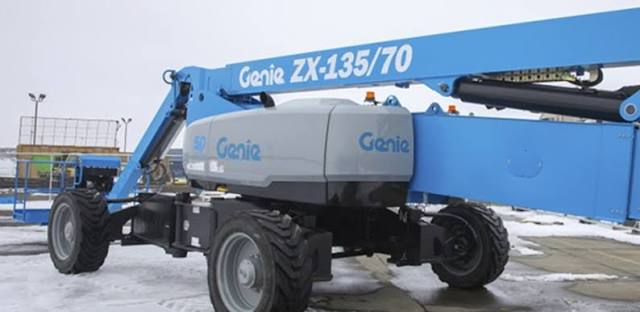

Genie Z-135/70 Aerial Lift
1 / 5
Image 1 of 5
Image: mhequipment.com

Specifications

22 data points

Engine

Engine specifications
Engine ModelTD 2011 L04i
Gross Power78.0 hp
Fuel TypeDiesel

Dimensions

Dimensions specifications
Ground Clearance20 in
Wheelbase162 in
Overall Length43 in
Overall Width97 in
Turning Radius306 in
Overall Height - mast lowered121 in

Performance

Performance specifications
Operating Weight44,899 lb
Max Speed3.0 mph
Tire Size445/65 D22.5
Hydraulic System Fluid Capacity65.1 gal
Tire Fill/TypeFoam
Fuel Capacity40.0 gal

Platform

Platform specifications
Max Platform Height1,621 in
Max Platform Weight Capacity500 lb
Platform Inner Length96 in
Platform Inner Width36 in
Max Working Height1,699 in
Max Horizontal Reach710 in
Platform Rotation160 °
