Grove

IND-1012

Carrydeck Crane

Gross Power
127.0 hp
Operating Weight
56,100 lb
Max Lift Capacity
35,000 lb
Max Speed - Forward
15.5 mph
All carrydeck cranes

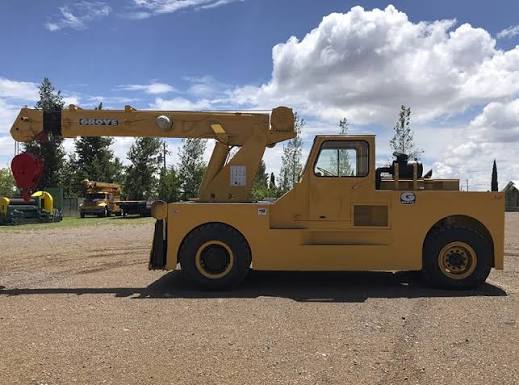

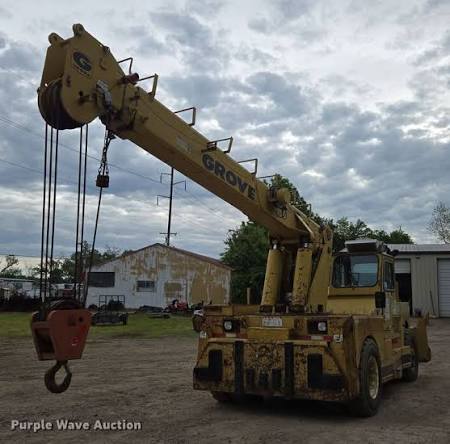

Grove IND-1012 Carrydeck Crane
1 / 5
Image 1 of 5
Image: cranenetwork.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Operating Weight56,100 lb
Operating Voltage12 V
Tire Size12x20-16PR
Carrier Fuel Capacity43.1 gal
Number of Axels2
Upper Structure Hydraulic System Fluid Capacity60.0 gal

Dimensions

Dimensions specifications
Ground Clearance15 in
Transport Width100 in
Transport Height124 in
Transport Length342 in
Width w/ Outriggers Extended168 in
Carrier Length235 in

Transmission

Transmission specifications
Max Speed - Forward15.5 mph
Transmission TypeFully Automatic
Number of Forward Gears4
Number of Reverse Gears1

Boom

Boom specifications
Max Lift Capacity35,000 lb
Max Elevating Angle70 °
Max Height @ Max Raise Angle - no jib504 in
Min Height @ Max Raise Angle72 in
Number of Sections3
Max Working Radius504 in
Min Working Radius72 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power127.0 hp
MakeGrove
Power Measured @2,400 rpm
Max Torque270 lb-ft
Torque Measured @2,400 rpm
