Grove

RT500C

Rough Terrain Crane

Operating Weight
53,053 lb
Max Lift Capacity
56,000 lb
Max Speed - Forward
22.8 mph
Gross Power
130.1 hp
All rough terrain cranes

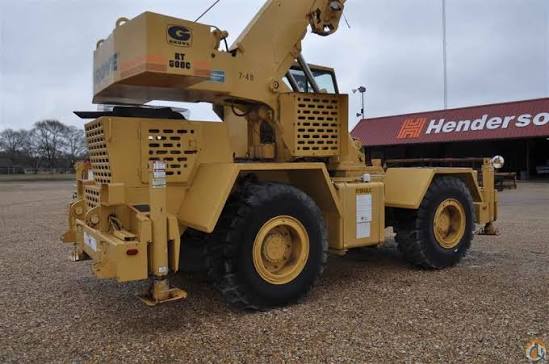

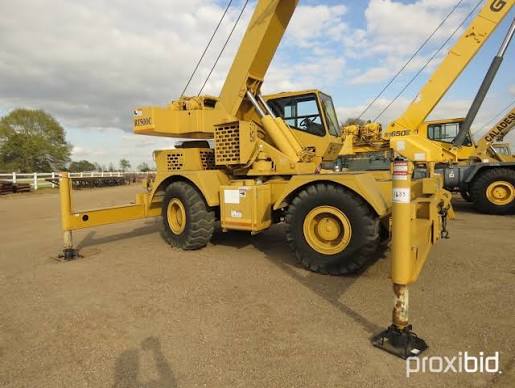

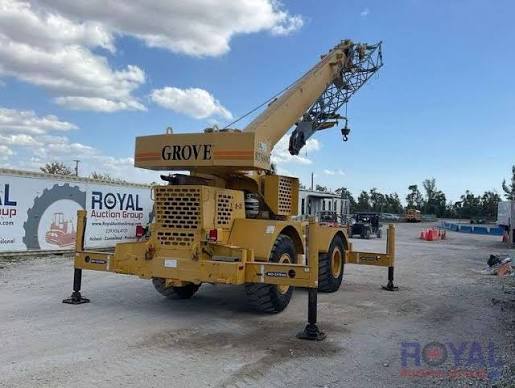

Grove RT500C Rough Terrain Crane
1 / 5
Image 1 of 5
Image: cranetrader.com

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Operating Weight53,053 lb
Fuel Capacity60.0 gal
Tire Size20.5X25-24PR
Operating Voltage24 V

Engine

Engine specifications
Engine Model6BT 5.9L
Displacement360 in³
Power Measured @2,500 rpm
Gross Power130.1 hp
Number of Cylinders6
AspirationTurbocharged
Torque Measured @1,400 rpm
Max Torque386 lb-ft

Weights

Weights specifications
Counterweight10,170 lb

Hydraulic System

Hydraulic System specifications
Max operating pressure2,500 psi

Dimensions

Dimensions specifications
Ground Clearance19 in
Wheelbase10 in
Transport Width226 in
Transport Height134 in
Transport Length443 in
Turning Radius204 in
Width w/ Outriggers Extended245 in
Upper Structure Tail Swing Radius124 in
Carrier/Base Length259 in

Transmission

Transmission specifications
Max Speed - Forward22.8 mph
Number of Forward Gears6
Number of Reverse Gears6
Transmission TypeRemote mounted powershift

Boom

Boom specifications
Max Lift Capacity56,000 lb
Max Height @ Max Raise Angle - no jib840 in
Min Height @ Max Raise Angle336 in
Max Elevating Angle75 °
Number of Sections3
Swing Speed3 rpm
Min Operating Radius120 in
Max Operating Radius780 in
