Grove

RT520

Rough Terrain Crane

Operating Weight
46,464 lb
Max Lift Capacity
40,000 lb
Max Speed - Forward
23.3 mph
All rough terrain cranes

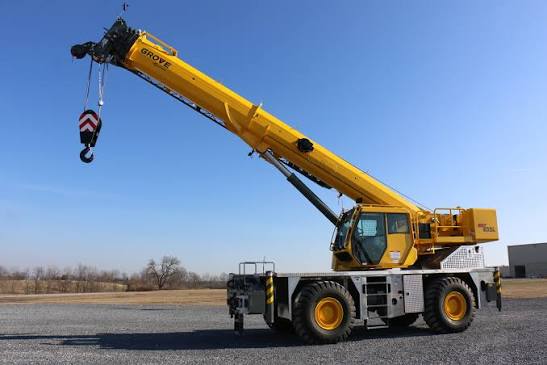

Grove RT520 Rough Terrain Crane
1 / 5
Image 1 of 5
Image: machinerytrader.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight46,464 lb
Fuel Capacity60.0 gal
Tire Size16.00X25
Operating Voltage24 V
Hydraulic System Fluid Capacity88.0 gal
Alternator Supplied Amperage90 A
Cooling System Fluid Capacity9.4 gal

Engine

Engine specifications
Engine Model4-53N
Displacement212 in³
Power Measured @2,800 rpm
Net Power115.0 hp
Torque Measured @1,800 rpm
Max Torque246 lb-ft

Dimensions

Dimensions specifications
Ground Clearance19 in
Wheelbase10 in
Transport Width96 in
Transport Height131 in
Transport Length396 in
Width w/ Outriggers Extended221 in
Upper Structure Tail Swing Radius103 in
Carrier/Base Length240 in

Transmission

Transmission specifications
Max Speed - Forward23.3 mph
Number of Forward Gears6
Number of Reverse Gears6
Transmission Typeremote mounted full powershift

Boom

Boom specifications
Max Lift Capacity40,000 lb
Max Height @ Max Raise Angle - no jib720 in
Min Height @ Max Raise Angle300 in
Max Elevating Angle75 °
Number of Sections3
Swing Speed3 rpm
Min Operating Radius144 in
Max Operating Radius780 in
