Grove

RT525

Rough Terrain Crane

Operating Weight
49,738 lb
Max Lift Capacity
50,000 lb
Max Speed - Forward
24.1 mph
All rough terrain cranes

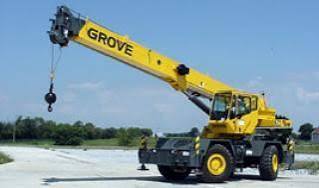

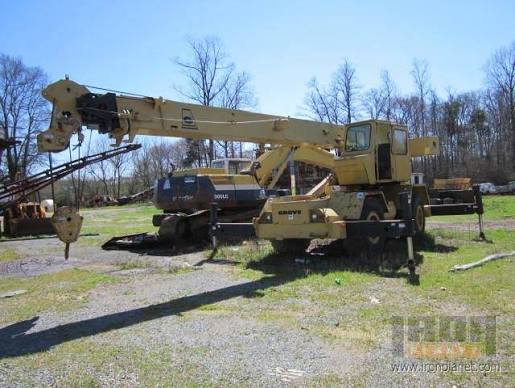

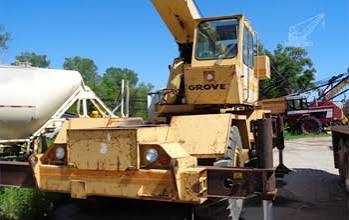

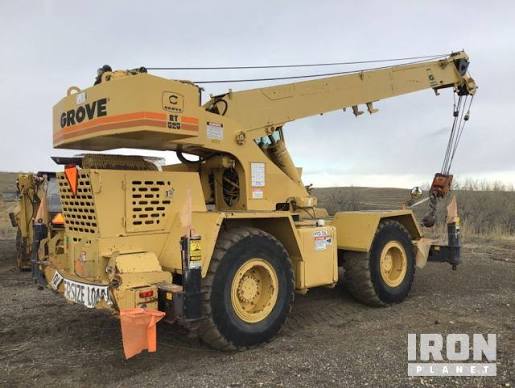

Grove RT525 Rough Terrain Crane
1 / 5
Image 1 of 5
Image: ironplanet.com

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Operating Weight49,738 lb
Fuel Capacity60.0 gal
Tire Size20.5x25
Operating Voltage24 V
Hydraulic System Fluid Capacity88.0 gal
Alternator Supplied Amperage90 A
Cooling System Fluid Capacity9.4 gal

Engine

Engine specifications
Engine Model4-53N
Displacement212 in³
Power Measured @2,800 rpm
Net Power115.0 hp
Number of Cylinders4
Torque Measured @1,800 rpm
Max Torque246 lb-ft
Engine MakeDetroit Diesel
Stroke5 in
Bore4 in

Dimensions

Dimensions specifications
Ground Clearance20 in
Wheelbase10 in
Transport Width106 in
Transport Height130 in
Transport Length437 in
Width w/ Outriggers Extended221 in
Upper Structure Tail Swing Radius124 in
Carrier/Base Length240 in

Transmission

Transmission specifications
Max Speed - Forward24.1 mph
Number of Forward Gears6
Number of Reverse Gears6
Transmission Typeremote mounted full powershift

Boom

Boom specifications
Max Lift Capacity50,000 lb
Max Height @ Max Raise Angle - no jib840 in
Min Height @ Max Raise Angle336 in
Max Elevating Angle75 °
Number of Sections3
Swing Speed3 rpm
Min Operating Radius120 in
Max Operating Radius780 in
