Grove

RT59S

Rough Terrain Crane

Operating Weight
47,980 lb
Max Lift Capacity
30,000 lb
Max Speed - Forward
27.1 mph
All rough terrain cranes

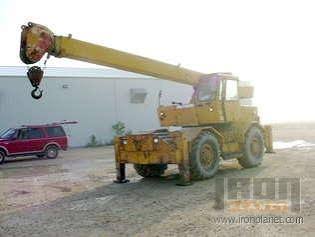

Grove RT59S Rough Terrain Crane
1 / 5
Image 1 of 5
Image: manitowoc.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight47,980 lb
Fuel Capacity50.0 gal
Tire Size16.00x24-16ply
Operating Voltage24 V
Hydraulic System Fluid Capacity90.0 gal
Alternator Supplied Amperage55 A

Engine

Engine specifications
Engine ModelV-504C
Displacement504 in³
Power Measured @2,600 rpm
Net Power142.0 hp
Aspirationnatural
Torque Measured @2,600 rpm
Max Torque287 lb-ft

Dimensions

Dimensions specifications
Ground Clearance18 in
Wheelbase10 in
Transport Width96 in
Transport Height132 in
Transport Length413 in
Width w/ Outriggers Extended212 in
Upper Structure Tail Swing Radius124 in
Carrier/Base Length245 in

Transmission

Transmission specifications
Max Speed - Forward27.1 mph
Number of Forward Gears6
Number of Reverse Gears6
Transmission Typeremote mounted full powershift

Boom

Boom specifications
Max Lift Capacity30,000 lb
Max Height @ Max Raise Angle - no jib720 in
Min Height @ Max Raise Angle288 in
Max Elevating Angle75 °
Number of Sections3
Swing Speed3 rpm
Min Operating Radius144 in
Max Operating Radius660 in
