Grove

RT620

Rough Terrain Crane

Operating Weight
47,980 lb
Max Lift Capacity
40,000 lb
Max Speed - Forward
28.5 mph
All rough terrain cranes

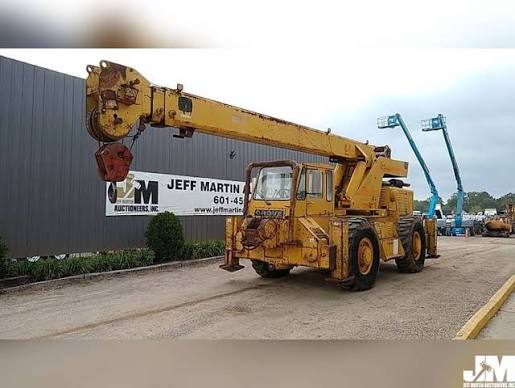

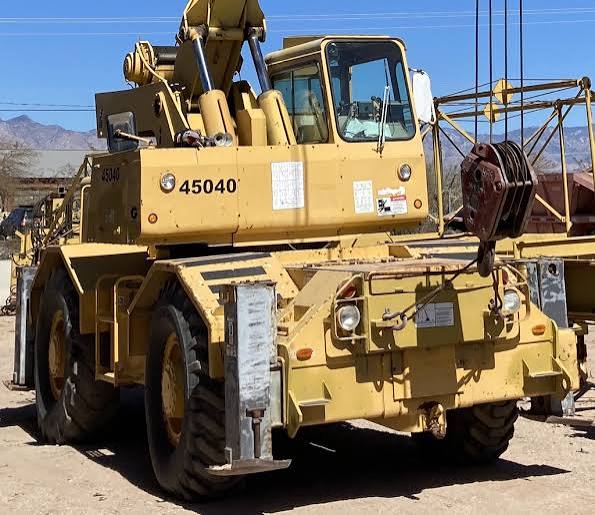

Grove RT620 Rough Terrain Crane
1 / 5
Image 1 of 5
Image: forconstructionpros.com

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Operating Weight47,980 lb
Fuel Capacity50.0 gal
Tire Size16.00x24
Operating Voltage24 V
Hydraulic System Fluid Capacity82.6 gal
Alternator Supplied Amperage55 A

Engine

Engine specifications
Engine ModelV-504C
Displacement504 in³
Power Measured @2,600 rpm
Net Power142.0 hp
Number of Cylinders8
Aspirationnatural
Torque Measured @1,800 rpm
Max Torque303 lb-ft
Engine MakeCummins Diesel
Stroke4 in
Bore5 in

Dimensions

Dimensions specifications
Ground Clearance15 in
Wheelbase10 in
Transport Width96 in
Transport Height132 in
Transport Length427 in
Width w/ Outriggers Extended212 in
Upper Structure Tail Swing Radius124 in
Carrier/Base Length245 in

Transmission

Transmission specifications
Max Speed - Forward28.5 mph
Number of Forward Gears6
Number of Reverse Gears6
Transmission Typefull powershift

Boom

Boom specifications
Max Lift Capacity40,000 lb
Max Height @ Max Raise Angle - no jib840 in
Min Height @ Max Raise Angle336 in
Max Elevating Angle75 °
Number of Sections3
Swing Speed3 rpm
Min Operating Radius120 in
Max Operating Radius780 in
