Grove

TM1075

Truck Crane

Operating Weight
147,367 lb
Max Lift Capacity
200,000 lb
Max Speed - Forward
45.9 mph
Displacement
855 in³
All truck cranes

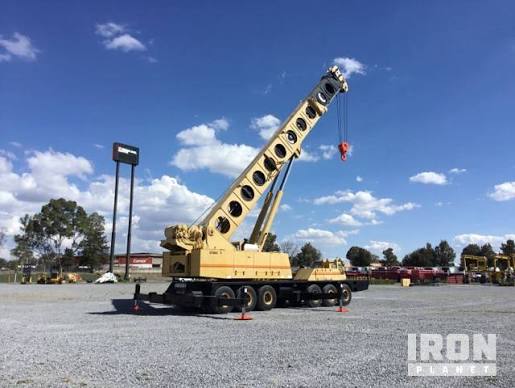

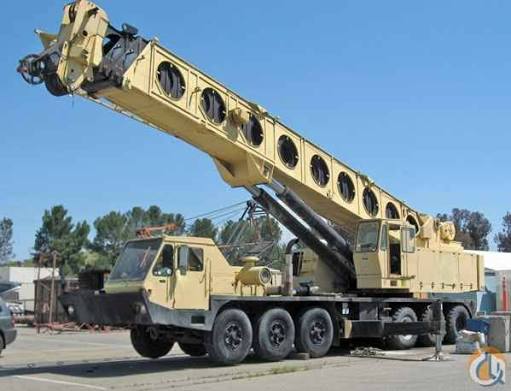

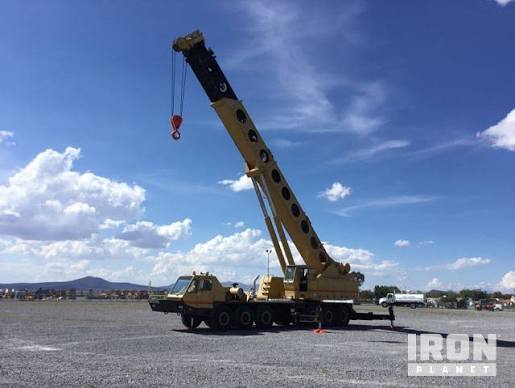

Grove TM1075 Truck Crane
1 / 5
Image 1 of 5
Image: cranenetwork.com

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Operating Weight147,367 lb
Operating Voltage24 V
Tire Size14.00x2020ply
Carrier Fuel Capacity100.0 gal
Upper Structure Hydraulic System Fluid Capacity300.0 gal
Number of Axels6
Alternator Supplied Amperage53 A
Upper Structure Fuel Capacity60.0 gal

Dimensions

Dimensions specifications
Ground Clearance15 in
Transport Width119 in
Transport Height156 in
Transport Length622 in

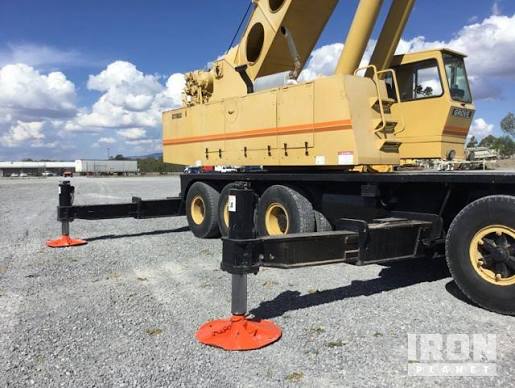

Width w/ Outriggers Extended306 in
Upper Structure Tail Swing Radius194 in
Carrier Length522 in

Transmission

Transmission specifications
Max Speed - Forward45.9 mph
Number of Forward Gears13
Number of Reverse Gears2
Transmission TypeFuller Roadranger RT009513

Boom

Boom specifications
Max Lift Capacity200,000 lb
Max Height @ Max Raise Angle - no jib2,064 in
Min Height @ Max Raise Angle528 in
Max Elevating Angle80 °
Number of Sections5
Swing Speed2 rpm
Min Working Radius144 in
Max Working Radius1,740 in

CARRIER ENGINE

CARRIER ENGINE specifications
Net Power315.0 hp
Displacement855 in³
Power Measured @2,100 rpm
MakeGrove
Max Torque903 lb-ft
Torque Measured @1,500 rpm

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
Net Power212.0 hp
Displacement555 in³
MakeGrove
Power Measured @3,300 rpm
Torque Measured @1,800 rpm
Max Torque394 lb-ft

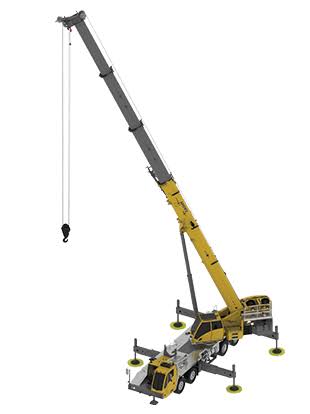

Comparable machines
