Grove

TM1150

Truck Crane

Operating Weight
157,440 lb
Max Lift Capacity
230,000 lb
Max Speed - Forward
43.8 mph
Displacement
568 in³
All truck cranes

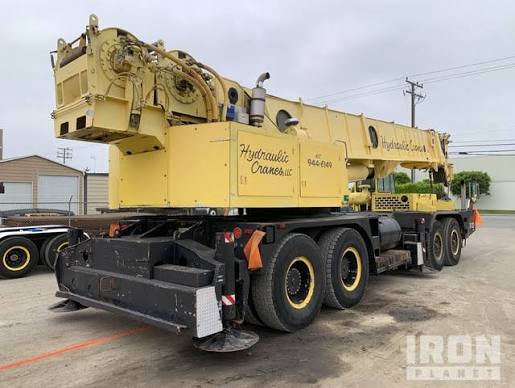

Grove TM1150 Truck Crane
1 / 5
Image 1 of 5
Image: cranenetwork.com

Specifications

38 data points

Operating Specifications

Operating Specifications specifications
Operating Weight157,440 lb
Operating Voltage24 V
Tire Size14.00x20-22
Carrier Fuel Capacity100.0 gal
Upper Structure Hydraulic System Fluid Capacity315.0 gal
Number of Axels6
Alternator Supplied Amperage90 A

Dimensions

Dimensions specifications
Ground Clearance11 in
Transport Width119 in
Transport Height158 in
Transport Length630 in
Width w/ Outriggers Extended325 in
Upper Structure Tail Swing Radius194 in
Carrier Length545 in

Transmission

Transmission specifications
Max Speed - Forward43.8 mph
Number of Forward Gears9
Number of Reverse Gears2
Transmission TypeFuller Roadranger RTO9509A

Boom

Boom specifications
Max Lift Capacity230,000 lb
Max Height @ Max Raise Angle - no jib2,064 in
Min Height @ Max Raise Angle528 in
Max Elevating Angle80 °
Number of Sections4
Swing Speed2 rpm
Min Working Radius144 in
Max Working Radius1,920 in

CARRIER ENGINE

CARRIER ENGINE specifications
Net Power315.0 hp
Displacement568 in³
Power Measured @2,100 rpm
MakeGrove
Max Torque870 lb-ft
Torque Measured @1,600 rpm

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
Net Power196.0 hp
Displacement318 in³
MakeGrove
Power Measured @2,800 rpm
Torque Measured @1,500 rpm
Max Torque427 lb-ft
