Grove

TM890

Truck Crane

Operating Weight
134,870 lb
Max Lift Capacity
180,000 lb
Max Speed - Forward
45.0 mph
Displacement
568 in³
All truck cranes

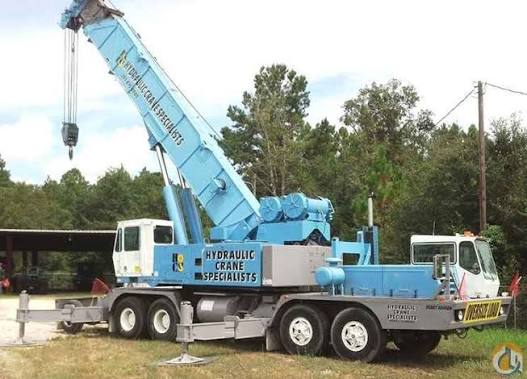

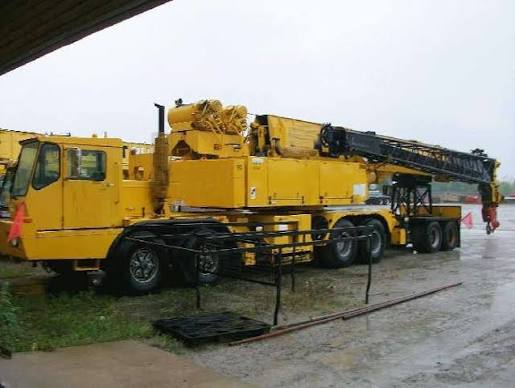

Grove TM890 Truck Crane
1 / 5
Image 1 of 5
Image: cranenetwork.com

Specifications

38 data points

Operating Specifications

Operating Specifications specifications
Operating Weight134,870 lb
Operating Voltage24 V
Tire Size14.00Rx20
Carrier Fuel Capacity100.0 gal
Upper Structure Hydraulic System Fluid Capacity305.0 gal
Number of Axels6

Dimensions

Dimensions specifications
Ground Clearance15 in
Transport Width118 in
Transport Height151 in
Transport Length552 in
Width w/ Outriggers Extended336 in
Upper Structure Tail Swing Radius152 in
Carrier Length522 in

Transmission

Transmission specifications
Max Speed - Forward45.0 mph
Number of Forward Gears13
Number of Reverse Gears2
Transmission TypeFuller Roadranger RTOO11613

Boom

Boom specifications
Max Lift Capacity180,000 lb
Max Height @ Max Raise Angle - no jib1,368 in
Min Height @ Max Raise Angle432 in
Max Elevating Angle80 °
Number of Sections4
Swing Speed2 rpm
Min Working Radius120 in
Max Working Radius1,320 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power370.2 hp
Displacement568 in³
Power Measured @2,100 rpm
MakeGrove
Max Torque983 lb-ft
Torque Measured @1,200 rpm

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
Gross Power199.9 hp
Displacement500 in³
MakeGrove
Power Measured @2,800 rpm
Torque Measured @1,700 rpm
Max Torque408 lb-ft
Number of cylinders8
