TM9100

Truck Crane

Operating Weight
137,159 lb
Max Lift Capacity
200,000 lb
Max Speed - Forward
54.7 mph
Displacement
659 in³
All truck cranes

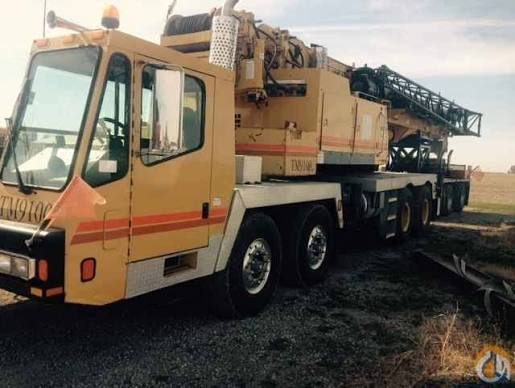

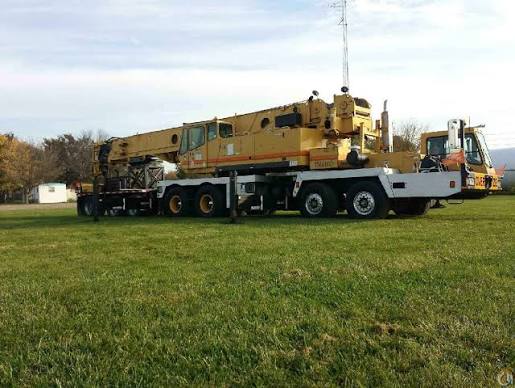

Grove TM9100 Truck Crane
1 / 5
Image 1 of 5
Image: cranenetwork.com

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Operating Weight137,159 lb
Operating Voltage24 V
Tire Sizefront 445/65R22.5 rear 14.00R20
Carrier Fuel Capacity100.0 gal
Upper Structure Hydraulic System Fluid Capacity274.0 gal
Number of Axels4
Upper Structure Fuel Capacity70.0 gal

Dimensions

Dimensions specifications
Ground Clearance12 in
Transport Width132 in
Transport Height150 in
Transport Length563 in
Width w/ Outriggers Extended300 in
Upper Structure Tail Swing Radius192 in
Carrier Length469 in

Transmission

Transmission specifications
Max Speed - Forward54.7 mph
Number of Forward Gears10
Number of Reverse Gears2
Transmission TypeEaton Fuller RTX-14710C

Boom

Boom specifications
Max Lift Capacity200,000 lb
Max Height @ Max Raise Angle - no jib1,771 in
Min Height @ Max Raise Angle475 in
Max Elevating Angle82 °
Number of Sections5
Swing Speed1 rpm
Min Working Radius120 in
Max Working Radius1,560 in

CARRIER ENGINE

CARRIER ENGINE specifications
Net Power375.0 hp
Gross Power400.0 hp
Displacement659 in³
Power Measured @2,100 rpm
MakeGrove
Max Torque1,450 lb-ft
Torque Measured @1,200 rpm
Number of cylinders6

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
Gross Power250.0 hp
Displacement696 in³
MakeGrove
Power Measured @2,200 rpm
Torque Measured @1,500 rpm
Max Torque716 lb-ft
