Grove

TMS180

Truck Crane

Operating Weight
46,685 lb
Max Lift Capacity
36,000 lb
Max Speed - Forward
49.5 mph
Displacement
501 in³
All truck cranes

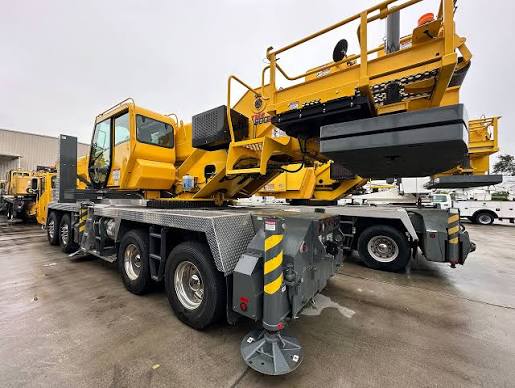

Grove TMS180 Truck Crane
1 / 5
Image 1 of 5
Image: environmental-expert.com

Specifications

34 data points

Operating Specifications

Operating Specifications specifications
Operating Weight46,685 lb
Operating Voltage12 V
Tire Sizefront 15x22.5 rear 10.00x20
Carrier Fuel Capacity40.0 gal
Upper Structure Hydraulic System Fluid Capacity73.0 gal
Number of Axels3
Alternator Supplied Amperage37 A

Dimensions

Dimensions specifications
Ground Clearance15 in
Transport Width96 in
Transport Height126 in
Transport Length402 in
Width w/ Outriggers Extended197 in
Upper Structure Tail Swing Radius109 in
Carrier Length295 in

Transmission

Transmission specifications
Max Speed - Forward49.5 mph
Number of Forward Gears5
Number of Reverse Gears1
Transmission TypeFuller 5CW65

Boom

Boom specifications
Max Lift Capacity36,000 lb
Max Height @ Max Raise Angle - no jib840 in
Min Height @ Max Raise Angle336 in
Max Elevating Angle75 °
Number of Sections3
Swing Speed3 rpm
Min Working Radius120 in
Max Working Radius798 in

CARRIER ENGINE

CARRIER ENGINE specifications
Net Power214.8 hp
Displacement501 in³
Power Measured @3,000 rpm
MakeGrove
Max Torque451 lb-ft
Torque Measured @1,600 rpm
Number of cylinders6

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
MakeGrove
