Grove

TMS700E

Truck Crane

Operating Weight
74,712 lb
Max Lift Capacity
120,000 lb
Max Speed - Forward
64.7 mph
Displacement
661 in³
All truck cranes

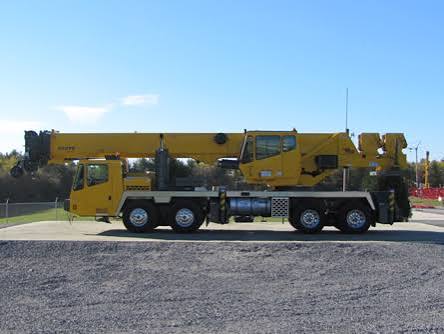

Grove TMS700E Truck Crane
1 / 5
Image 1 of 5
Image: wppecrane.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight74,712 lb
Operating Voltage12 V
Tire Sizefront 445/65R22.5 rear 315/80R22.5
Carrier Fuel Capacity100.2 gal
Upper Structure Hydraulic System Fluid Capacity169.9 gal
Number of Axels4

Dimensions

Dimensions specifications
Ground Clearance11 in
Transport Width103 in
Transport Height142 in
Transport Length534 in
Width w/ Outriggers Extended168 in
Upper Structure Tail Swing Radius162 in
Carrier Length439 in

Transmission

Transmission specifications
Max Speed - Forward64.7 mph
Number of Forward Gears11
Number of Reverse Gears3
Transmission TypeRoadranger

Boom

Boom specifications
Max Lift Capacity120,000 lb
Max Height @ Max Raise Angle - no jib1,416 in
Min Height @ Max Raise Angle432 in
Max Elevating Angle78 °
Number of Sections4
Swing Speed2 rpm
Min Working Radius120 in
Max Working Radius1,200 in
Height2,544 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power450.6 hp
Displacement661 in³
Power Measured @1,800 rpm
MakeGrove
Max Torque1,450 lb-ft
Torque Measured @1,200 rpm

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
MakeGrove
