Grove

TMS800E

Truck Crane

Operating Weight
90,707 lb
Max Lift Capacity
147,000 lb
Max Speed - Forward
64.7 mph
Displacement
659 in³
All truck cranes

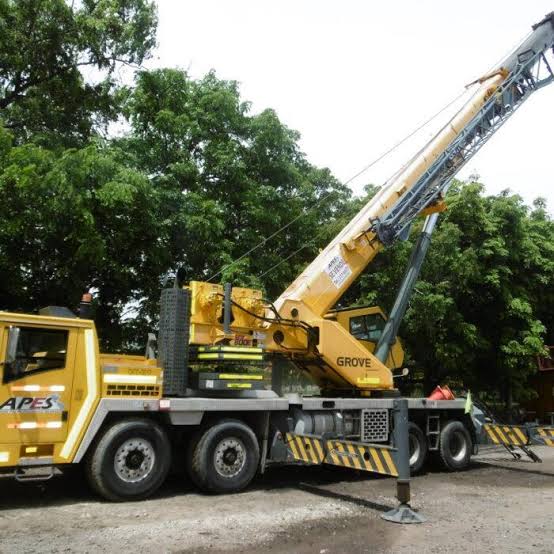

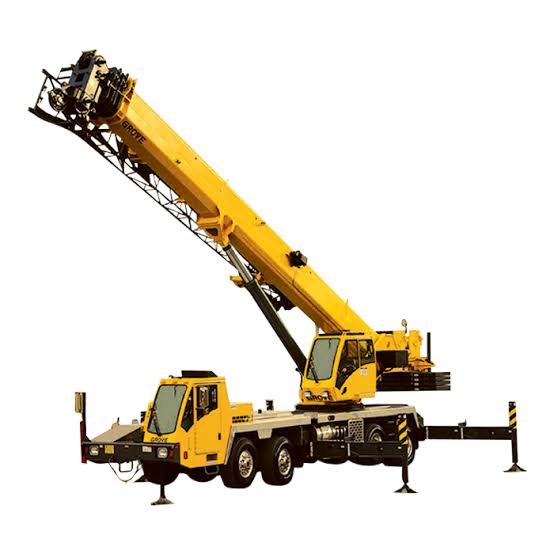

Grove TMS800E Truck Crane
1 / 5
Image 1 of 5
Image: manitowoc.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight90,707 lb
Operating Voltage12 V
Tire Sizefront 445/65R22.5 rear 315/80R22.5
Carrier Fuel Capacity97.0 gal
Upper Structure Hydraulic System Fluid Capacity183.1 gal
Number of Axels4

Dimensions

Dimensions specifications
Ground Clearance9 in
Transport Width103 in
Transport Height135 in
Transport Length599 in
Width w/ Outriggers Extended288 in
Upper Structure Tail Swing Radius178 in
Carrier Length449 in

Transmission

Transmission specifications
Max Speed - Forward64.7 mph
Number of Forward Gears10
Number of Reverse Gears2
Transmission TypeRoadranger Ultra shift

Boom

Boom specifications
Max Lift Capacity147,000 lb
Max Height @ Max Raise Angle - no jib1,536 in
Min Height @ Max Raise Angle492 in
Max Elevating Angle78 °
Number of Sections4
Swing Speed2 rpm
Min Working Radius96 in
Max Working Radius1,440 in
Height2,760 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power399.7 hp
Displacement659 in³
Power Measured @1,800 rpm
MakeGrove
Max Torque1,550 lb-ft
Torque Measured @1,200 rpm

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
MakeGrove
