Grove

TMS900E

Truck Crane

Operating Weight
79,943 lb
Max Lift Capacity
155,000 lb
Max Speed - Forward
64.7 mph
Displacement
661 in³
All truck cranes

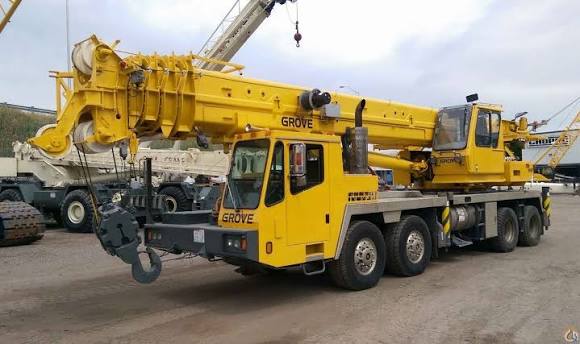

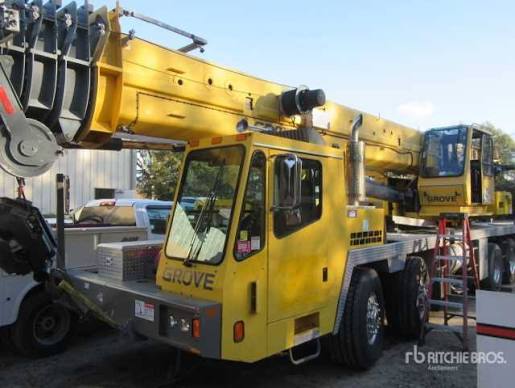

Grove TMS900E Truck Crane
1 / 5
Image 1 of 5
Image: bigge.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight79,943 lb
Operating Voltage24 V
Tire Sizefront 445/65R22.5 rear 315/80R22.5
Carrier Fuel Capacity99.4 gal
Upper Structure Hydraulic System Fluid Capacity134.2 gal
Number of Axels4

Weights

Weights specifications
Counterweight12,899 lb

Dimensions

Dimensions specifications
Transport Width102 in
Transport Height143 in
Transport Length515 in
Width w/ Outriggers Extended288 in
Upper Structure Tail Swing Radius152 in
Carrier Length443 in

Transmission

Transmission specifications
Max Speed - Forward64.7 mph
Number of Forward Gears11
Number of Reverse Gears3
Transmission TypeRoadranger

Boom

Boom specifications
Max Lift Capacity155,000 lb
Max Height @ Max Raise Angle - no jib1,702 in
Min Height @ Max Raise Angle444 in
Max Elevating Angle82 °
Number of Sections5
Swing Speed2 rpm
Min Working Radius96 in
Max Working Radius1,560 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power450.6 hp
Displacement661 in³
Power Measured @1,800 rpm
MakeGrove
Max Torque1,450 lb-ft
Torque Measured @1,200 rpm
Number of cylinders6

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
MakeGrove
