Hamm

H18i P

Padfoot Compactor

Operating Weight
42,593 lb
Max Speed
7.5 mph
Drum Width
84 in
Gross Power
214.6 hp
All padfoot compactors

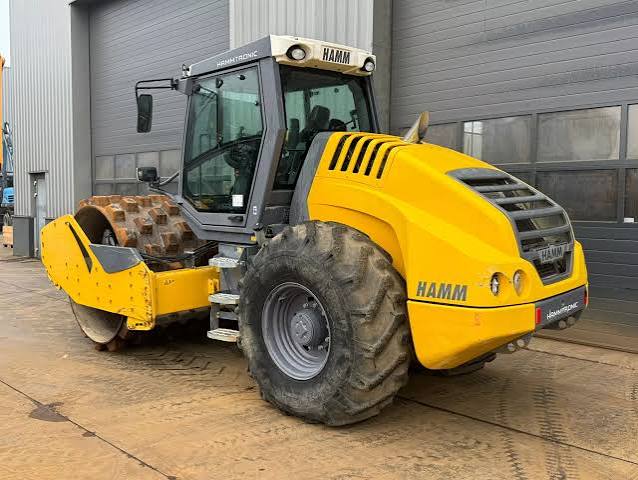

Hamm H18i P Padfoot Compactor
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight42,593 lb
Max Speed7.5 mph
Fuel Capacity74.0 gal
Oscillating angle10 °
Smooth drum Operating weight with Cab41,833 lb
DEF tank capacity8.5 gal

Engine

Engine specifications
Engine ModelTCD 6.1 L6
Gross Power214.6 hp
Net Power214.6 hp
Number of Cylinders6
Engine MakeDEUTZ
Emissions levelEU Stage IV / EPA Tier 4

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab118 in
Wheelbase129 in
Overall Length260 in
Overall Width91 in
Turning Radius - Inside166 in

Tires & Wheels

Tires & Wheels specifications
TiresTR 23.1-26 12 PR

Drum

Drum specifications
Drum Width84 in
Vibration Frequency 127 vpm
Centrifugal Force - High74,412 lb
Drum Diameter70 in
Nominal Amplitude - High0 in
Pad Height4 in
Number of Pads150
Centrifugal Force - Low54,404 lb
Nominal Amplitude - Low0 in
Vibratory Frequency 230 vpm
Drum thickness1 in
