Hamm

HD+ 80i VV

Smooth Drum Roller

Operating Weight
22,399 lb
Max Speed
3.8 mph
Drum Width
66 in
Gross Power
74.3 hp
All smooth drum rollers

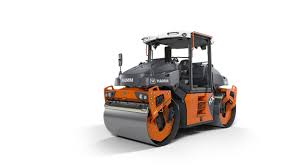

Hamm HD+ 80i VV Smooth Drum Roller
1 / 5
Image 1 of 5
Image: wirtgen-group.com

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Operating Weight22,399 lb
Operating weight ROPS16,623 lb
Operating weight Cabin16,998 lb
Max Speed3.8 mph
Fuel Capacity31.8 gal
Operating Width71 in
Water Spray Tank Fluid Capacity185.0 gal
Steering Angle10 °

Engine

Engine specifications
Engine ModelTCD 2.9 L4
Gross Power74.3 hp
Net Power74.3 hp
Number of Cylinders4
Engine MakeDEUTZ
MakeDeutz

Dimensions

Dimensions specifications
Ground Clearance30 in
Height - Top of Cab114 in
Wheelbase132 in
Overall Length176 in
Overall Width72 in
Turning Radius - Inside163 in
Track Width72 in

General Specifications

General Specifications specifications
Engine typeDEUTZ TCD 2.9 L4 — Starting 2024 Model Year
DRUM WIDTH IN. (CM)66.1 (168) — Starting 2024 Model Year
INSIDE TURN RADIUS IN. (CM)163 (414) — Starting 2019 Model Year
WIDTH IN. (CM)70.9 (180) — Starting 2024 Model Year
FREQUENCY HZ48/58 — Starting 2019 Model Year

Drum

Drum specifications
Drum Width66 in
Drum Diameter45 in
Nominal Amplitude - High0 in
Centrifugal Force - High19,558 lb
Static Linear Load11 lb-ft
Vibration Frequency—
Centrifugal Force - Low15,512 lb
Nominal Amplitude - Low0 in
Drum thickness1 in
