Haulotte

COMPACT 2632E

Aerial Lift

Max Platform Height
316 in
Overall Length
8 in
Overall Width
33 in
All aerial lifts

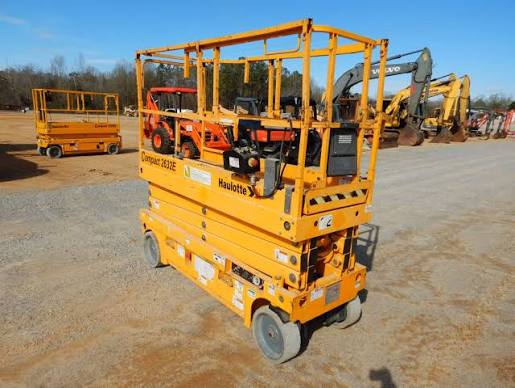

Haulotte COMPACT 2632E Aerial Lift
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

26 data points

Engine

Engine specifications
System Voltage24 V
Battery Amp Hours225

Dimensions

Dimensions specifications
Ground Clearance5 in
Wheelbase73 in
Overall Length8 in
Overall Width33 in
Turning Radius85 in
Gradeability23.0 %
Stowed Width33 in
Stowed Height85 in
Boom Type/Size32.30 ft (9.85 m)
Height w/ Rails86 in

Tires & Wheels

Tires & Wheels specifications
Tire Size15x5

Performance

Performance specifications
Operating Weight3,649 lb
Max Speed2.1 mph
Tire Size15x5
Hydraulic System Fluid Capacity7.1 gal

Capacity

Capacity specifications
Platform Capacity11 lb

Platform

Platform specifications
Max Platform Height316 in
Max Platform Weight Capacity500 lb
Platform Inner Length91 in
Platform Inner Width32 in
Max Working Height388 in
Lift Time36.0 s
Deck Extension36 in
Lower Time42.0 s
