Haulotte
JLG

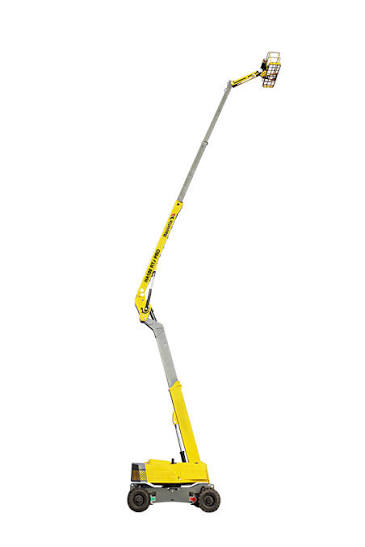

1350SJP
Aerial Lift
27 specifications
1 / 5
Image 1 of 5
Specifications
27 data points
Engine
| Engine Model | Perkins |
|---|---|
| Gross Power | 83.9 hp |
| Emission Tier Level | Tier 3Final |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Wheelbase | 139 in |
| Overall Length | 39 in |
| Overall Width | 101 in |
| Transport Length | 349 in |
| Gradeability | 45.0 % |
| Turning Radius Outside Tires | 217 in |
| Tailswing Radius | 121 in |
| Up and Over Height | 448 in |
| Tilt alarm | 5 ° |
| Transport Height - Maximum | 149 in |
Electrical System
| Battery | 12V |
|---|
Performance
| Operating Weight | 44,321 lb |
|---|---|
| Max Speed | 3.1 mph |
| Tire Size | 445/65-225 |
| Tire Fill/Type | solid rough terrain |
Platform
| Max Platform Height | 1,164 in |
|---|---|
| Max Platform Weight Capacity | 550 lb |
| Platform Inner Length | 96 in |
| Platform Inner Width | 36 in |
| Max Working Height | 1,236 in |
| Max Horizontal Reach | 841 in |
| Overall height (stowed, guardrail folded) | 110 in |
| Wind Rating | 37.0 mph |
