Haulotte
JLG
1350SJP
Aerial Lift
27 specifications
1 / 5
Image 1 of 5
Specifications
27 data points
Engine
| Engine Model | Perkins |
|---|---|
| Gross Power | 83.9 hp |
| Emission Tier Level | Tier 3Final |

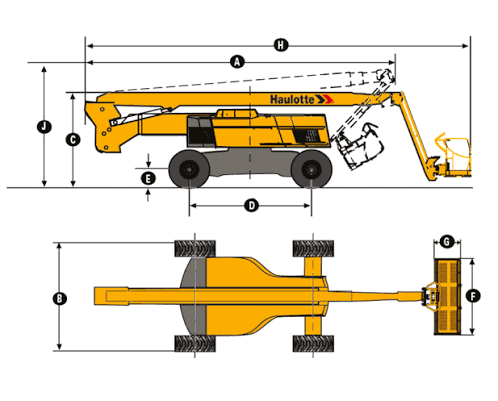

Dimensions
| Ground Clearance | 15 in |
|---|---|
| Wheelbase | 139 in |
| Overall Length | 43 in |
| Overall Width | 98 in |
| Transport Length | 433 in |
| Gradeability | 40.0 % |
| Turning Radius Outside Tires | 217 in |
| Tailswing Radius | 155 in |
| Up and Over Height | 690 in |
| Tilt alarm | 4 ° |
| Transport Height - Maximum | 148 in |
Electrical System
| Battery | 12V |
|---|
Performance
| Operating Weight | 52,700 lb |
|---|---|
| Max Speed | 3.1 mph |
| Tire Size | 445/65-225 |
Platform
| Max Platform Height | 1,556 in |
|---|---|
| Max Platform Weight Capacity | 500 lb |
| Platform Inner Length | 96 in |
| Platform Inner Width | 36 in |
| Max Working Height | 1,634 in |
| Max Horizontal Reach | 782 in |
| Overall height (stowed, guardrail folded) | 109 in |
| Wind Rating | 28.0 mph |
| Maximum no of Persons | 2 |
