Haulotte

HT132 RTJ PRO

Aerial Lift

Max Platform Height
1,574 in
Overall Length
584 in
Overall Width
98 in
All aerial lifts

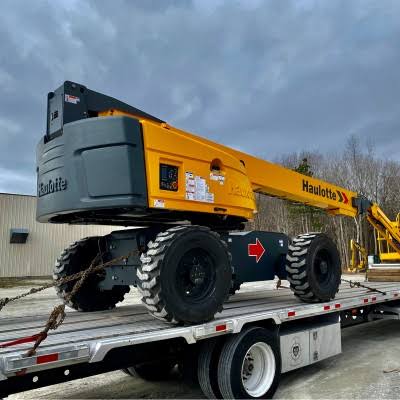

Haulotte HT132 RTJ PRO Aerial Lift
1 / 5
Image 1 of 5
Image: industrialmanlifts.com

Specifications

18 data points

Engine

Engine specifications
Gross Power84.9 hp
Engine MakePerkins

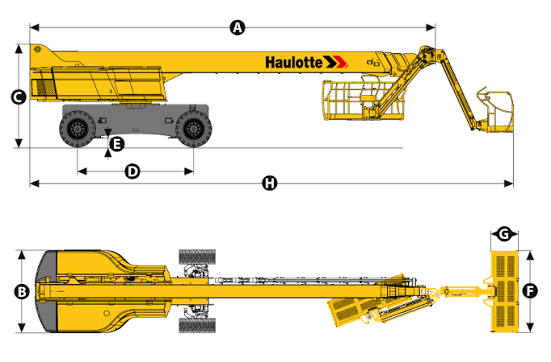

Dimensions

Dimensions specifications
Ground Clearance15 in
Wheelbase139 in
Overall Length584 in
Overall Width98 in
Turning Radius217 in
Overall Height - mast lowered120 in
Gradeability40.0 %
Tailswing Radius110 in

Performance

Performance specifications
Operating Weight47,187 lb
Max Speed3.1 mph
Tire Size445/65-22.5

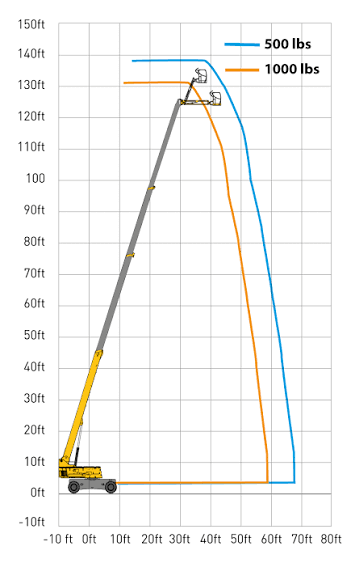

Platform

Platform specifications
Max Platform Height1,574 in
Max Platform Weight Capacity500 lb
Max Working Height1,662 in
Max Horizontal Reach796 in
Platform Rotation180 °
