Haulotte

Optimum 1530E

Aerial Lift

Max Platform Height
175 in
Overall Length
6 in
Overall Width
30 in
All aerial lifts

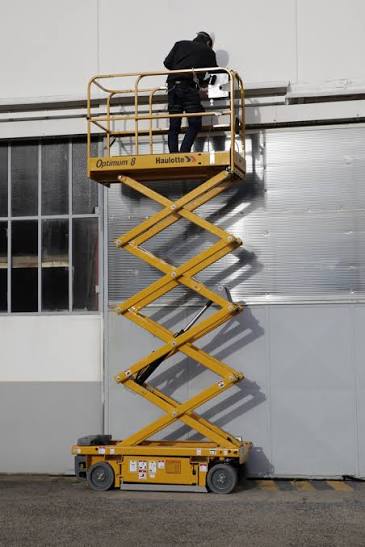

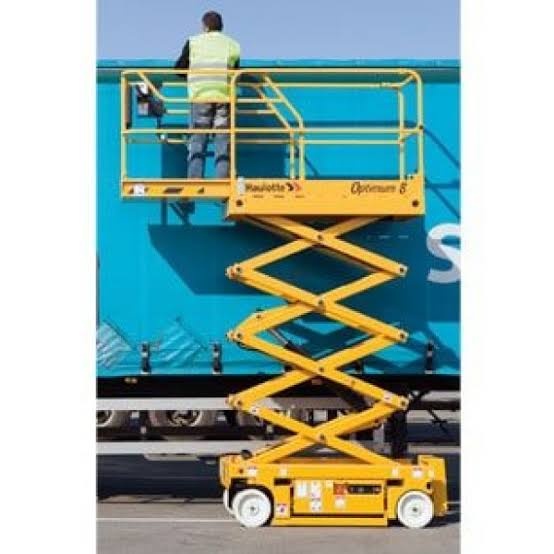

Haulotte Optimum 1530E Aerial Lift
1 / 5
Image 1 of 5
Image: m.made-in-china.com

Specifications

28 data points

Engine

Engine specifications
System Voltage24 V
Battery Amp Hours225

Dimensions

Dimensions specifications
Ground Clearance3 in
Wheelbase54 in
Overall Length6 in
Overall Width30 in
Turning Radius67 in
Stowed Width30 in
Stowed Height74 in
Boom Type/Size20.50 ft (6.25 m)
Height w/ Rails76 in
Height w/o Rails31 in
Platform Size104 in

Tires & Wheels

Tires & Wheels specifications
Tire Size12.5x4.25

Performance

Performance specifications
Operating Weight2,944 lb
Max Speed2.8 mph
Tire Size12.5x4.25
Hydraulic System Fluid Capacity5.3 gal
Tire Fill/TypeSolid non-marking

Capacity

Capacity specifications
Platform Capacity595 lb

Platform

Platform specifications
Max Platform Height175 in
Max Platform Weight Capacity595 lb
Platform Inner Length6 in
Platform Inner Width2 in
Max Working Height247 in
Lift Time20.0 s
Deck Extension36 in
Lower Time35.0 s
