Haulotte

OPTIMUM 1930E

Aerial Lift

Max Platform Height
228 in
Overall Length
6 in
Overall Width
30 in
All aerial lifts

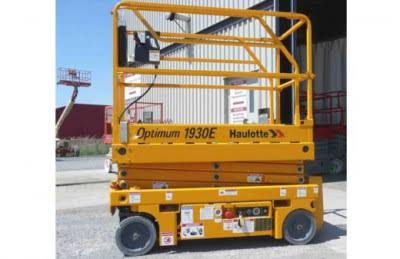

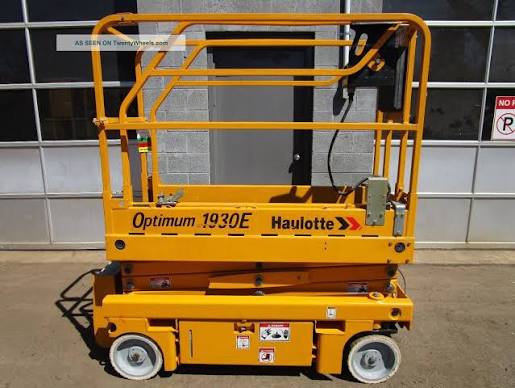

Haulotte OPTIMUM 1930E Aerial Lift
1 / 5
Image 1 of 5
Image: mayonmachinery.com

Specifications

28 data points

Engine

Engine specifications
System Voltage24 V
Battery Amp Hours225

Dimensions

Dimensions specifications
Ground Clearance3 in
Wheelbase54 in
Overall Length6 in
Overall Width30 in
Turning Radius67 in
Stowed Width30 in
Stowed Height80 in
Boom Type/Size24.10 ft (7.35 m)
Height w/ Rails78 in
Height w/o Rails35 in
Platform Size104 in

Tires & Wheels

Tires & Wheels specifications
Tire Size12.5x4.25

Performance

Performance specifications
Operating Weight3,131 lb
Max Speed2.8 mph
Tire Size12.5x4.25
Hydraulic System Fluid Capacity5.3 gal
Tire Fill/TypeSolid non-marking

Capacity

Capacity specifications
Platform Capacity507 lb

Platform

Platform specifications
Max Platform Height228 in
Max Platform Weight Capacity507 lb
Platform Inner Length6 in
Platform Inner Width2 in
Max Working Height300 in
Lift Time23.0 s
Deck Extension36 in
Lower Time32.0 s
