HaulotteHaulotte

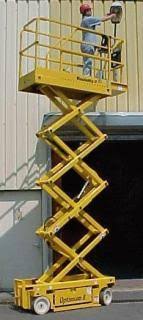

COMPACT 2032E
Aerial Lift
26 specifications
1 / 5
Image 1 of 5
Specifications
24 data points
Engine
| System Voltage | 24 V |
|---|---|
| Battery Amp Hours | 180 |
| Number of Batteries | 4 |
| Charger Amps | 30 |
Dimensions
| Ground Clearance | 3 in |
|---|---|
| Wheelbase | 55 in |
| Overall Length | 6 in |
| Overall Width | 30 in |
| Turning Radius | 67 in |
| Height w/ Rails | 76 in |
| Height w/o Rails | 32 in |
Performance
| Operating Weight | 2,943 lb |
|---|---|
| Max Speed | 2.9 mph |
| Tire Size | Dia 317 |
| Hydraulic System Fluid Capacity | 4.8 gal |
| Tire Fill/Type | Solid/non marking |
Platform
| Max Platform Height | 175 in |
|---|---|
| Max Platform Weight Capacity | 617 lb |
| Platform Inner Length | 65 in |
| Platform Inner Width | 28 in |
| Max Working Height | 254 in |
| Lift Time | 20.0 s |
| Deck Extension | 36 in |
| Lower Time | 35.0 s |
