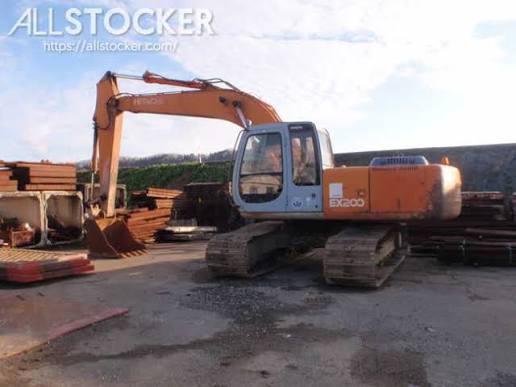

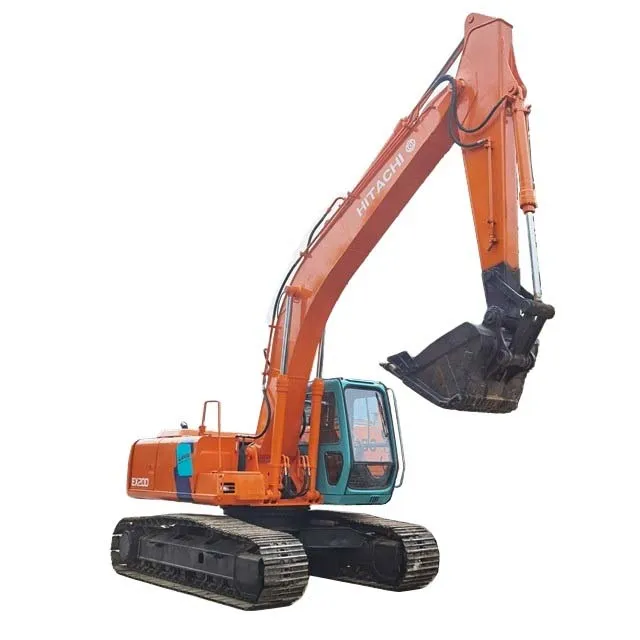

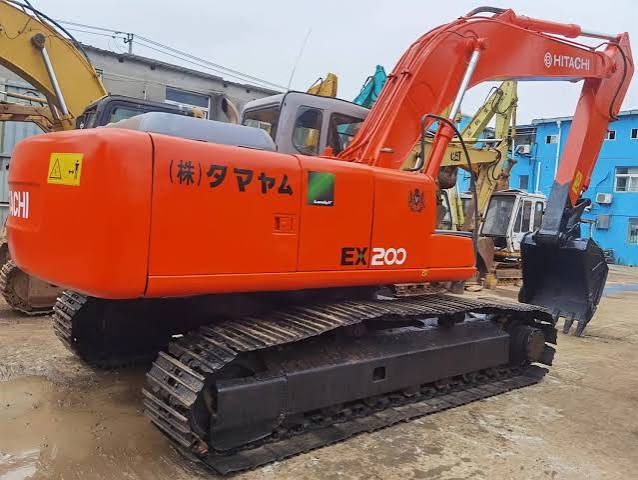

Hitachi
EX200-5
- Operating Weight
- 41,500 lb
- Max Digging Depth
- 236 in
- Max Digging Depth
- 263 in
- Net Power
- 132.0 hp
1 / 5
Image 1 of 5
Specifications
54 data points
Operating Specifications
| Operating Weight | 41,500 lb |
|---|---|
| Fuel Capacity | 81.9 gal |
| Hydraulic Pump Flow Capacity | 97.8 gal/min |
| Hydraulic System Fluid Capacity | 52.9 gal |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Engine Oil Capacity | 6.7 gal |
| Cooling System Fluid Capacity | 6.1 gal |
| Swing Drive Fluid Capacity | 2.2 gal |
| Alternator Supplied Amperage | 40 A |
Engine
| Engine Model | A-6BG1T |
|---|---|
| Displacement | 396 in³ |
| Power Measured @ | 1,950 rpm |
| Net Power | 132.0 hp |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,600 rpm |
| Max Torque | 340 lb-ft |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 114 in |
| Length of Track on Ground | 133 in |
| Tail Swing Radius | 109 in |
| Width to Outside of Tracks | 110 in |
| Removal Counterweight Clearance | 41 in |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Track Gauge | 88 in |
| Number of Track Rollers per Side | 7 |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 46 |
| Number of Carrier Rollers per Side | 2 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 236 in |
|---|---|
| Max Reach Along Ground | 357 in |
| Max Loading Height | 252 in |
| Max Vertical Wall Digging Depth | 203 in |
| Max Cutting Height | 361 in |
| Shipping Length of Unit | 379 in |
| Shipping Height of Unit | 122 in |
Bucket
| Reference Bucket Capacity | 1.10 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.60 yd³ |
| Minimum Bucket Capacity | 0.71 yd³ |
Swing Mechanism
| Swing Speed | 14 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 263 in |
|---|---|
| Max Vertical Wall Digging Depth | 239 in |
| Max Cutting Height | 378 in |
| Max Loading Height | 268 in |
| Max Reach Along Ground | 384 in |
| Shipping Length of Unit | 374 in |
| Shipping Height of Unit | 118 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 322 in |
|---|---|
| Max Cutting Height | 403 in |
| Max Loading Height | 293 in |
| Max Vertical Wall Digging Depth | 298 in |
| Max Reach Along Ground | 438 in |
| Shipping Length of Unit | 373 in |
| Shipping Height of Unit | 141 in |
