Hitachi
Kobelco
SK350LC-10 H&W
Excavator
35 specifications
1 / 5

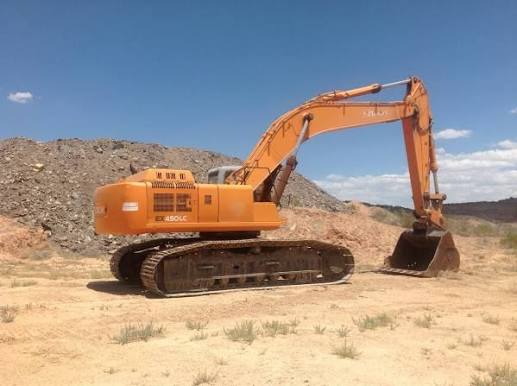

Image 1 of 5
Specifications
40 data points
Operating Specifications
| Operating Weight | 95,000 lb |
|---|---|
| Fuel Capacity | 159.9 gal |
| Hydraulic Pump Flow Capacity | 190.3 gal/min |
| Hydraulic System Fluid Capacity | 137.4 gal |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Engine Oil Capacity | 13.3 gal |
| Cooling System Fluid Capacity | 11.9 gal |
| Swing Drive Fluid Capacity | 4.4 gal |
| Alternator Supplied Amperage | 40 A |
Engine
| Engine Model | A-6RB1TQA |
|---|---|
| Displacement | 838 in³ |
| Power Measured @ | 2,000 rpm |
| Net Power | 301.0 hp |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 907 lb-ft |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 131 in |
| Length of Track on Ground | 159 in |
| Tail Swing Radius | 137 in |
| Width to Outside of Tracks | 132 in |
| Removal Counterweight Clearance | 49 in |
Undercarriage
| Ground Pressure | 12 psi |
|---|---|
| Track Gauge | 108 in |
| Number of Track Rollers per Side | 8 |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 47 |
| Number of Carrier Rollers per Side | 2 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 311 in |
|---|---|
| Max Reach Along Ground | 468 in |
| Max Loading Height | 298 in |
| Max Vertical Wall Digging Depth | 268 in |
| Max Cutting Height | 432 in |
| Shipping Length of Unit | 466 in |
| Shipping Height of Unit | 137 in |
Bucket
| Reference Bucket Capacity | 2.39 yd³ |
|---|---|
| Maximum Bucket Capacity | 3.00 yd³ |
| Minimum Bucket Capacity | 1.80 yd³ |
Swing Mechanism
| Swing Speed | 9 rpm |
|---|
