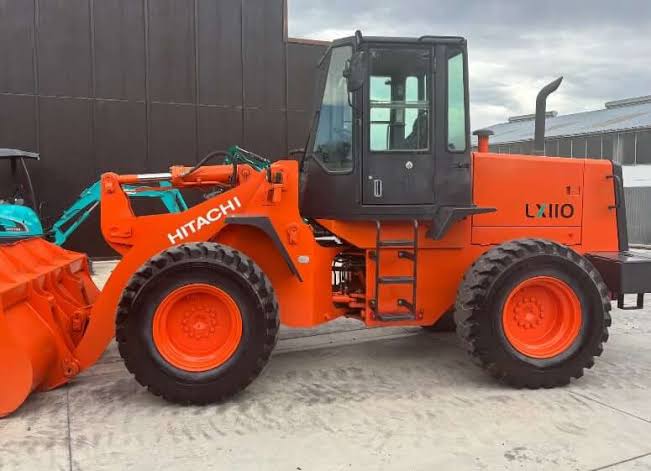

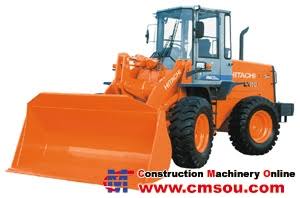

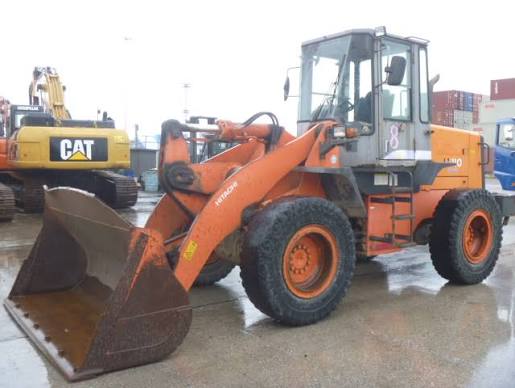

Hitachi
John Deere
304J
Wheel Loader
45 specifications
1 / 5
Image 1 of 5
Specifications
42 data points
Operating Specifications
| Operating Weight | 22,245 lb |
|---|---|
| Fuel Capacity | 45.0 gal |
| Tire Size | 17.5-25-12PR (L3) |
| Hydraulic System Fluid Capacity | 21.2 gal |
| Static Tipping Weight | 17,417 lb |
| Operating Voltage | 24 V |
| Turning Radius | 197 in |
| Engine Oil Fluid Capacity | 3.5 gal |
| Alternator Supplied Amperage | 50 A |
| Front Axle/Diff Fluid Capacity | 5.6 gal |
| Rear Axle/Diff Fluid Capacity | 5.6 gal |
| Cooling System Fluid Capacity | 8.2 gal |
| Transmission Fluid Capacity | 5.3 gal |
Engine
| Engine Model | BB-6BG1T |
|---|---|
| Displacement | 396 in³ |
| Power Measured @ | 2,200 rpm |
| Net Power | 128.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharger |
Hydraulic System
| Pump Flow Capacity | 13.8 gal/min |
|---|---|
| Raise Time | 5.9 s |
| Lower Time | 3.0 s |
| Dump Time | 1.4 s |
| Relief Valve Setting | 2,986 psi |
| Pump Type | gear type |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Height - Top of Cab | 125 in |
| Wheelbase | 115 in |
| Width Over Tires | 96 in |
| Reach at Max Lift and Dump | 43 in |
| Length with Bucket on Ground | 267 in |
| Hinge Pin - Max Height | 146 in |
Transmission
| Max Speed - Forward | 21.5 mph |
|---|---|
| Max Speed - Reverse | 21.8 mph |
| Transmission Type | Torque converter ; countershaft type powershift with electrically controlled |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 2.69 yd³ |
|---|---|
| Bucket Capacity - struck | 2.30 yd³ |
| Dump Clearance at Max Raise | 109 in |
| Breakout Force | 22,031 lb |
| Bucket Width | 98 in |
