Case
21D
Wheel Loader
43 specifications
1 / 5

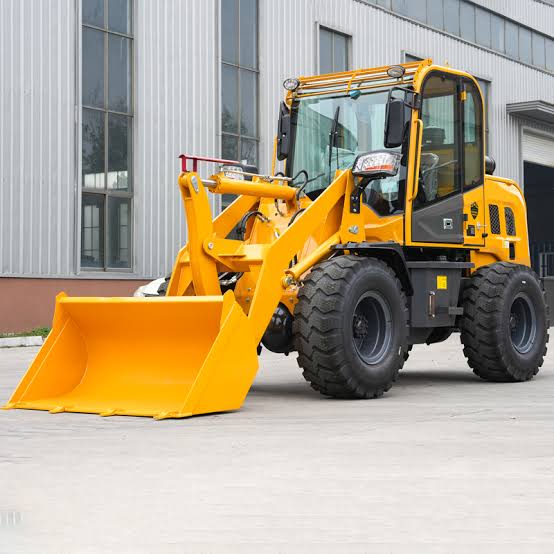

Image 1 of 5
Specifications
23 data points
Operating Specifications
| Operating Weight | 13,448 lb |
|---|---|
| Tire Size | 16/70-20 |
| Static Tipping Weight | 8,093 lb |
| Turning Radius | 101 in |
Engine
| Engine Model | 1004-4L03 |
|---|---|
| Displacement | 244 in³ |
| Power Measured @ | 2,400 rpm |
| Net Power | 77.8 hp |
| Number of Cylinders | 4 |
Dimensions
| Ground Clearance | 12 in |
|---|---|
| Height - Top of Cab | 115 in |
| Wheelbase | 90 in |
| Width Over Tires | 80 in |
| Reach at Max Lift and Dump | 37 in |
| Length with Bucket on Ground | 227 in |
Transmission
| Max Speed - Forward | 16.5 mph |
|---|---|
| Max Speed - Reverse | 15.6 mph |
| Transmission Type | Powershift |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Bucket
| Bucket Capacity - heaped | 1.40 yd³ |
|---|---|
| Dump Clearance at Max Raise | 100 in |
| Bucket Width | 85 in |
