Hitachi
Case
21D

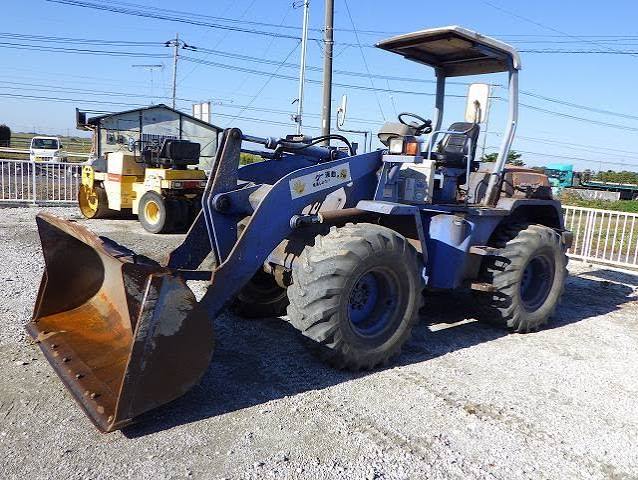

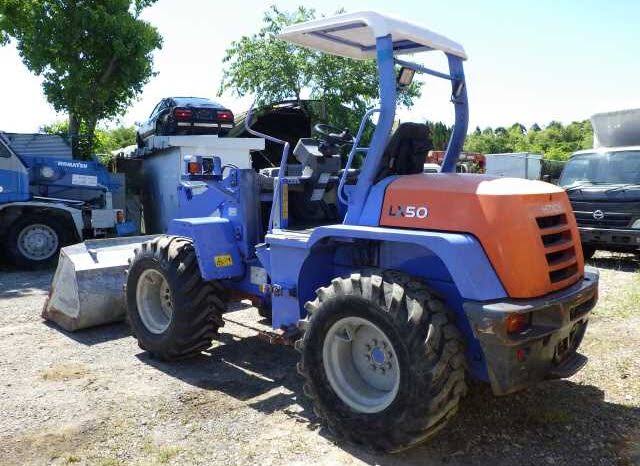

Wheel Loader
43 specifications
1 / 5
Image 1 of 5
Specifications
39 data points
Operating Specifications
| Operating Weight | 10,351 lb |
|---|---|
| Fuel Capacity | 19.9 gal |
| Tire Size | 17.5/65-20-10PR (L2) |
| Hydraulic System Fluid Capacity | 19.3 gal |
| Static Tipping Weight | 7,496 lb |
| Operating Voltage | 24 V |
| Turning Radius | 149 in |
| Engine Oil Fluid Capacity | 3.5 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 60 A |
| Front Axle/Diff Fluid Capacity | 2.6 gal |
| Rear Axle/Diff Fluid Capacity | 2.6 gal |
| Cooling System Fluid Capacity | 3.2 gal |
Engine
| Engine Model | V3300-DI-KA |
|---|---|
| Displacement | 203 in³ |
| Power Measured @ | 2,200 rpm |
| Net Power | 59.0 hp |
| Number of Cylinders | 4 |
Hydraulic System
| Pump Flow Capacity | 20.8 gal/min |
|---|---|
| Raise Time | 5.0 s |
| Lower Time | 3.5 s |
| Dump Time | 1.0 s |
| Relief Valve Setting | 2,990 psi |
| Pump Type | gear |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 108 in |
| Wheelbase | 88 in |
| Width Over Tires | 76 in |
| Reach at Max Lift and Dump | 35 in |
| Length with Bucket on Ground | 198 in |
| Hinge Pin - Max Height | 125 in |
Transmission
| Max Speed - Forward | 21.2 mph |
|---|---|
| Max Speed - Reverse | 21.2 mph |
| Transmission Type | Hydrostatic transmission automatically controls power and speed with electrically controlled |
Bucket
| Bucket Capacity - heaped | 1.20 yd³ |
|---|---|
| Bucket Capacity - struck | 0.99 yd³ |
| Dump Clearance at Max Raise | 100 in |
| Breakout Force | 10,566 lb |
| Bucket Width | 79 in |
