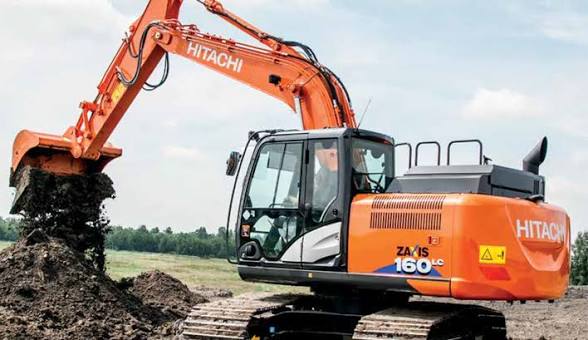

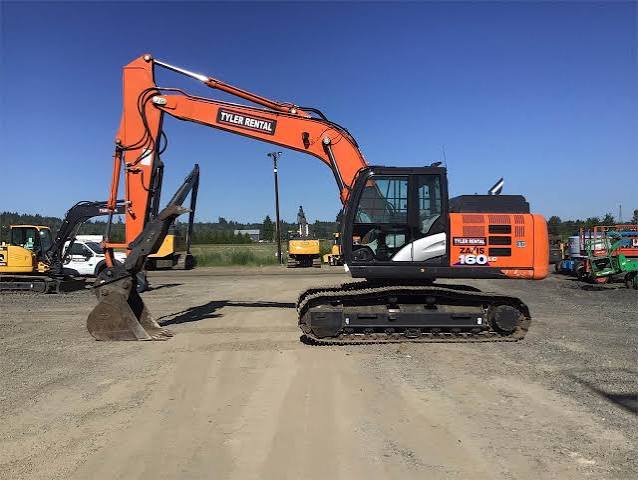

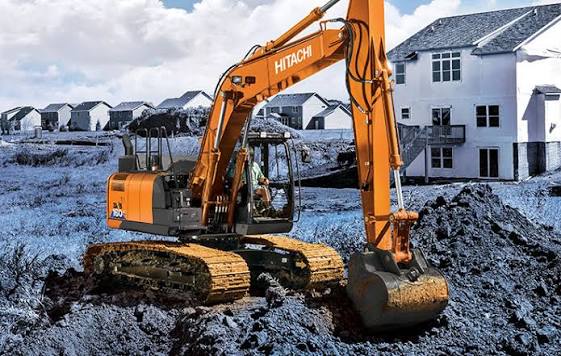

Hitachi
ZX160LC-6
- Operating Weight
- 38,400 lb
- Max Digging Depth
- 236 in
- Max Digging Depth
- 257 in
- Net Power
- 101.0 hp
1 / 5
Image 1 of 5
Specifications
55 data points
Operating Specifications
| Operating Weight | 38,400 lb |
|---|---|
| Fuel Capacity | 75.3 gal |
| Hydraulic Pump Flow Capacity | 33.1 gal/min |
| Hydraulic System Fluid Capacity | 55.5 gal |
| Engine Oil Capacity | 4.5 gal |
| Cooling System Fluid Capacity | 6.4 gal |
Engine
| Engine Model | 4JJ1 |
|---|---|
| Displacement | 183 in³ |
| Power Measured @ | 2,000 rpm |
| Net Power | 101.0 hp |
| Aspiration | Turbocharged and charged air cooled |
| Alternator | 50 A |
| Emission Tier Level | EPA Final Tier 4 |
| Battery | 2 |
| Off-Level Capacity | 70.0 % |
Hydraulic System
| Implement - Operating Pressure | 4,980 psi |
|---|---|
| Travel - Operating Pressure | 4,980 psi |
| Controls | Pilot levers short-stroke low-effort hydraulic pilot controls with shutoff lever |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Tail Swing Radius | 86 in |
| Overall Height | 122 in |
| Track Gauge | 79 in |
| Counterweight Clearance | 41 in |
| Undercarriage Overall Length | 98 in |
| Cab height | 12 in |
| Center to center - idler to sprocket | 122 in |
Undercarriage
| Number of Track Rollers per Side | 7 |
|---|---|
| Number of Shoes per Side | 43 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 38,030 lb |
| Track Adjustment | Hydraulic |
Boom/Stick Excavator Option 1
| Max Digging Depth | 236 in |
|---|---|
| Max Reach Along Ground | 344 in |
| Max Vertical Wall Digging Depth | 194 in |
| Max Cutting Height | 350 in |
| Minimum swing radius | 20 in |
| Max.Dumping Height | 244 in |
| Bucket Digging Force - SAE | 22,257 lb |
| Bucket Digging Force - ISO | 25,180 lb |
| Arm Digging Force - ISO | 20,459 lb |
| Arm Digging Force - SAE | 19,784 lb |
Swing Mechanism
| Swing Speed | 13 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 257 in |
|---|---|
| Max Vertical Wall Digging Depth | 226 in |
| Max Cutting Height | 350 in |
| Max Reach Along Ground | 361 in |
| Minimum swing radius | 23 in |
| Max.Dumping Height | 243 in |
| Bucket Digging Force - SAE | 22,257 lb |
| Bucket Digging Force - ISO | 25,180 lb |
| Arm Digging Force - SAE | 17,536 lb |
| Arm Digging Force - ISO | 18,210 lb |
Boom/Stick Excavator Option 3
| Overall height | 122 in |
|---|
Performance
| Travel speed low | 2.2 mph |
|---|---|
| Travel Speed - High | 3.3 mph |
