Hitachi

ZX300LC-6

Excavator

Operating Weight
64,375 lb
Max Digging Depth
284 in
Max Digging Depth
311 in
Net Power
249.0 hp
All excavators

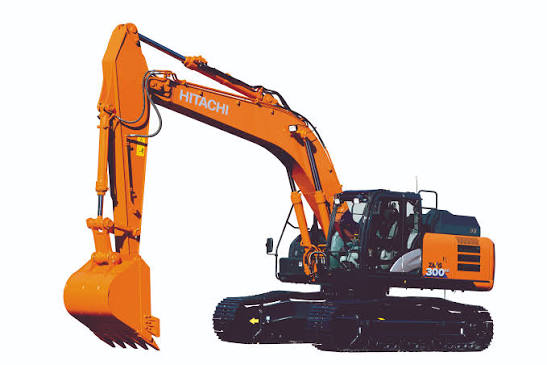

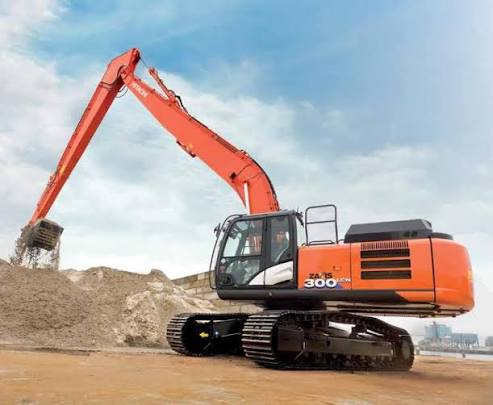

Hitachi ZX300LC-6 Excavator
1 / 5
Image 1 of 5
Image: hitachicm.com

Specifications

75 data points

Operating Specifications

Operating Specifications specifications
Operating Weight64,375 lb

Engine

Engine specifications
Engine ModelIsuzu 6HK1
Displacement475 in³
Power Measured @1,900 rpm
Net Power249.0 hp
AspirationTurbocharged air-to-air charge-air cooler
Engine MakeIsuzu
Cooling systemHigh efficiency direct-driven suction-type fan
Emissions levelEPA Final Tier 4 / EU Stage IV
Off-Level Capacity70.0 %

Hydraulic System

Hydraulic System specifications
Main pump - Maximum flow62.4 gal
Hydraulic System TypeOpen center load sensing
Implement - Operating Pressure4,975 psi
Travel - Operating Pressure5,076 psi
ControlsPilot levers short-stroke low-effort hydraulic pilot controls with shutoff lever
Main pump type2 variable-displacement pumps

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab124 in
Length of Track on Ground420 in
Tail Swing Radius128 in
Width to Outside of Tracks130 in
Removal Counterweight Clearance47 in

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Number of Track Rollers per Side8
Max Travel Speed3.3 mph
Number of Shoes per Side48
Number of Carrier Rollers per Side2
Drawbar Pull55,303 lb

Fluid Capacities

Fluid Capacities specifications
Fuel Tank134.8 gal
Hydraulic system76.7 gal
Hydraulic Tank41.3 gal
Cooling system12.7 gal
Engine oil with filter12.7 gal
Diesel exhaust fluid (DEF) tank18.5 gal
Swing drive3.2 gal
Propel2.5 gal
Pump Drive0.3 gal

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth284 in
Max Reach Along Ground415 in
Max Loading Height289 in
Max Vertical Wall Digging Depth256 in
Max Cutting Height404 in
Shipping Length of Unit420 in
Shipping Height of Unit126 in
Bucket Digging Force - SAE39,342 lb
Bucket Digging Force - ISO45,412 lb
Arm Digging Force - ISO32,373 lb
Arm Digging Force - SAE31,024 lb

Bucket

Bucket specifications
Maximum Bucket Capacity2.80 yd³
Minimum Bucket Capacity1.70 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth311 in
Max Vertical Wall Digging Depth278 in
Max Cutting Height413 in
Max Loading Height298 in
Max Reach Along Ground437 in
Shipping Length of Unit422 in
Shipping Height of Unit133 in
Bucket Digging Force - SAE39,342 lb
Bucket Digging Force - ISO45,412 lb
Arm Digging Force - SAE27,202 lb
Arm Digging Force - ISO28,551 lb

Electrical System

Electrical System specifications
Batteries2 x 12 V volts
Battery capacity—
Alternator rating50 amp
Work Lights2 halogen

Cylinders

Cylinders specifications
Bore (Boom)5 in
Bore (Bucket)5 in
Stroke (Bucket)42 in
Bore (Arm)6 in
Stroke (Arm)65 in
Stroke (Boom)56 in
Rod Diameter (Arm)4 in
Rod Diameter (Boom)4 in
Rod Diameter (Bucket)4 in
