Hitachi

ZX350LC-5N

Excavator

Operating Weight
76,258 lb
Net Power
202.0 hp
All excavators

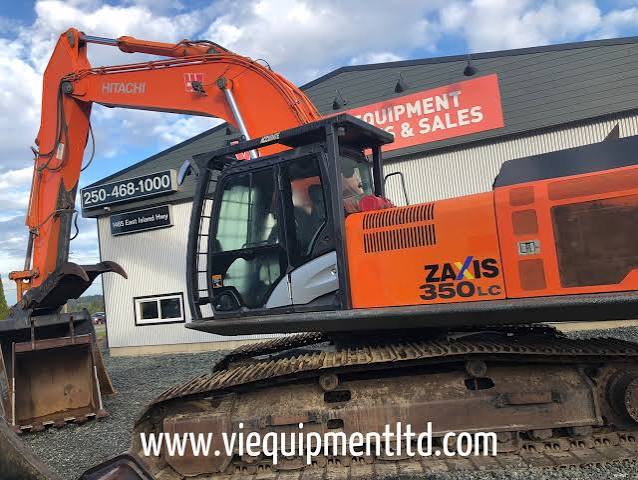

Hitachi ZX350LC-5N Excavator
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight76,258 lb
Fuel Capacity166.0 gal
Hydraulic System Fluid Capacity48.0 gal
Engine Oil Capacity13.0 gal
Cooling System Fluid Capacity11.0 gal
Swing Drive Fluid Capacity3.2 gal

Engine

Engine specifications
Engine Model6HK1XYSA-S2
Displacement475 in³
Power Measured @1,900 rpm
Net Power202.0 hp

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab122 in
Tail Swing Radius181 in
Removal Counterweight Clearance37 in

Undercarriage

Undercarriage specifications
Number of Track Rollers per Side8
Max Travel Speed3.1 mph
Number of Shoes per Side48
Number of Carrier Rollers per Side2
Drawbar Pull64,375 lb

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm
