Hitachi

ZX380HH

Excavator

Operating Weight
83,335 lb
Max Digging Depth
288 in
Net Power
247.0 hp
All excavators

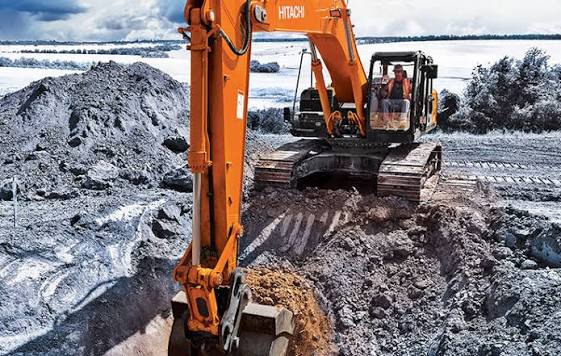

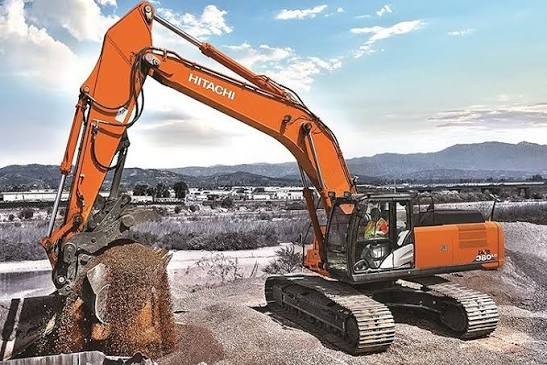

Hitachi ZX380HH Excavator
1 / 5
Image 1 of 5
Image: m.cehome.com

Specifications

41 data points

Operating Specifications

Operating Specifications specifications
Operating Weight83,335 lb
Fuel Capacity148.0 gal
Hydraulic Pump Flow Capacity153.3 gal/min
Hydraulic System Fluid Capacity84.6 gal
Hydraulic System Relief Valve Pressure4,980 psi
Engine Oil Capacity9.6 gal
Cooling System Fluid Capacity9.3 gal
Operating Voltage24 V
Swing Drive Fluid Capacity4.4 gal
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelAA-6HK1X
Displacement475 in³
Power Measured @2,000 rpm
Net Power247.0 hp
Aspirationturbocharged intercooled
Torque Measured @17,000 rpm
Max Torque644 lb-ft

Dimensions

Dimensions specifications
Ground Clearance23 in
Height - Top of Cab131 in
Length of Track on Ground148 in
Tail Swing Radius131 in
Width to Outside of Tracks126 in
Removal Counterweight Clearance50 in

Undercarriage

Undercarriage specifications
Ground Pressure11 psi
Track Gauge102 in
Number of Track Rollers per Side8
Max Travel Speed3.3 mph
Shoe Size24 in
Number of Shoes per Side46
Number of Carrier Rollers per Side2

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth288 in
Max Reach Along Ground426 in
Max Loading Height275 in
Max Vertical Wall Digging Depth254 in
Max Cutting Height395 in
Shipping Length of Unit434 in
Shipping Height of Unit133 in

Bucket

Bucket specifications
Reference Bucket Capacity2.00 yd³
Maximum Bucket Capacity2.00 yd³
Minimum Bucket Capacity1.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm
