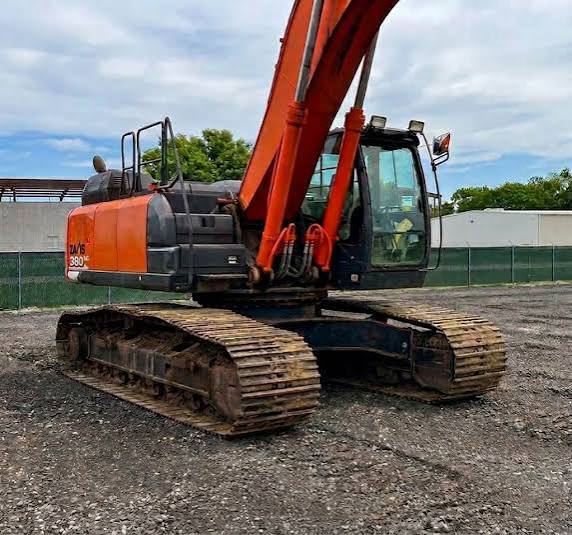

Hitachi
ZX380LC-6
- Operating Weight
- 82,277 lb
- Max Digging Depth
- 292 in
- Max Digging Depth
- 323 in
- Net Power
- 271.0 hp
1 / 5
Image 1 of 5
Specifications
79 data points
Operating Specifications
| Operating Weight | 82,277 lb |
|---|
Engine
| Engine Model | Isuzu 6HK1 |
|---|---|
| Displacement | 476 in³ |
| Power Measured @ | 1,900 rpm |
| Net Power | 271.0 hp |
| Aspiration | Turbocharged air-to-air charge-air cooler |
| Engine Make | Isuzu |
| Cooling system | High efficiency direct-driven suction-type fan and cool-on-demand hydraulic-driven suction-type fan with remote-mounted drive for hydraulic oil cooler |
| Emissions level | EPA Final Tier 4 / EU Stage IV |
| Off-Level Capacity | 70.0 % |
Hydraulic System
| Main pump - Maximum flow | 76.1 gal |
|---|---|
| Hydraulic System Type | Open center load sensing |
| Implement - Operating Pressure | 4,975 psi |
| Travel - Operating Pressure | 5,149 psi |
| Controls | Pilot levers short-stroke low-effort hydraulic pilot controls with shutoff lever |
| Main pump type | 2 variable-displacement pumps |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 125 in |
| Length of Track on Ground | 159 in |
| Tail Swing Radius | 143 in |
| Width to Outside of Tracks | 130 in |
| Removal Counterweight Clearance | 47 in |
| Undercarriage Overall Length | 196 in |
| Undercarriage Width | 134 in |
Undercarriage
| Ground Pressure | 8 psi |
|---|---|
| Track Gauge | 102 in |
| Number of Track Rollers per Side | 8 |
| Max Travel Speed | 3.2 mph |
| Number of Shoes per Side | 48 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 66,900 lb |
| Track Shoe Width | 32 in |
Fluid Capacities
| Fuel Tank | 166.5 gal |
|---|---|
| Hydraulic system | 89.9 gal |
| Cooling system | 11.9 gal |
| Hydraulic Tank | 47.6 gal |
| Engine oil with filter | 12.7 gal |
| Diesel exhaust fluid (DEF) tank | 18.5 gal |
| Swing drive | 4.2 gal |
| Propel | 2.5 gal |
| Pump Drive | 0.3 gal |
Boom/Stick Excavator Option 1
| Max Digging Depth | 292 in |
|---|---|
| Max Reach Along Ground | 430 in |
| Max Loading Height | 285 in |
| Max Vertical Wall Digging Depth | 253 in |
| Max Cutting Height | 408 in |
| Shipping Length of Unit | 442 in |
| Shipping Height of Unit | 130 in |
| Bucket Digging Force - SAE | 48,109 lb |
| Bucket Digging Force - ISO | 55,303 lb |
| Arm Digging Force - ISO | 41,590 lb |
| Arm Digging Force - SAE | 39,791 lb |
Bucket
| Maximum Bucket Capacity | 2.80 yd³ |
|---|---|
| Minimum Bucket Capacity | 1.29 yd³ |
Swing Mechanism
| Swing Speed | 11 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 323 in |
|---|---|
| Max Vertical Wall Digging Depth | 287 in |
| Max Cutting Height | 424 in |
| Max Loading Height | 301 in |
| Max Reach Along Ground | 459 in |
| Shipping Length of Unit | 445 in |
| Shipping Height of Unit | 143 in |
| Bucket Digging Force - SAE | 48,109 lb |
| Bucket Digging Force - ISO | 55,303 lb |
| Arm Digging Force - SAE | 34,396 lb |
| Arm Digging Force - ISO | 35,745 lb |
Electrical System
| Batteries | 2 x 12 V volts |
|---|---|
| Battery capacity | — |
| Alternator rating | 50 amp |
| Work Lights | 2 halogen |
Cylinders
| Bore (Boom) | 6 in |
|---|---|
| Bore (Bucket) | 6 in |
| Stroke (Bucket) | 49 in |
| Bore (Arm) | 7 in |
| Stroke (Arm) | 69 in |
| Stroke (Boom) | 60 in |
| Rod Diameter (Arm) | 5 in |
| Rod Diameter (Boom) | 4 in |
| Rod Diameter (Bucket) | 4 in |
